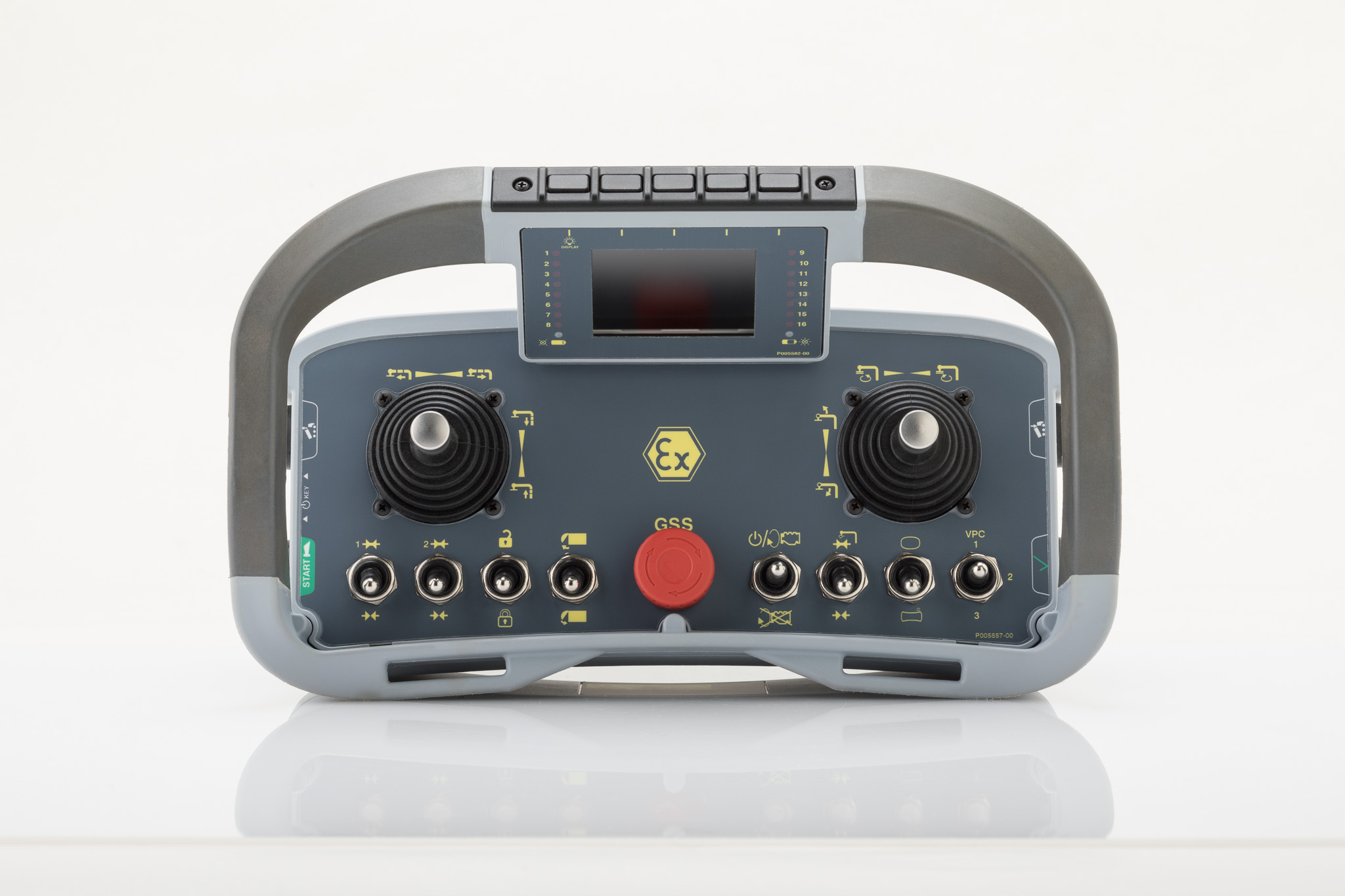

AJN Ex

AJN Ex is the most compact model of the Ex series, designed for the safe and reliable control of machines operating in potentially explosive atmospheres. It has been developed for complex industrial applications and combines functional safety, robustness, and ergonomics in a single solution. AJN Ex is suitable for use in ATEX gas and dust areas classified as Zone 1, Zone 21, Zone 2, and Zone 22, as well as for mining applications in category M1, where the remote control must ensure consistent performance even under harsh environmental condition.

TECHNICAL DATA SHEET CONTACT US

Options

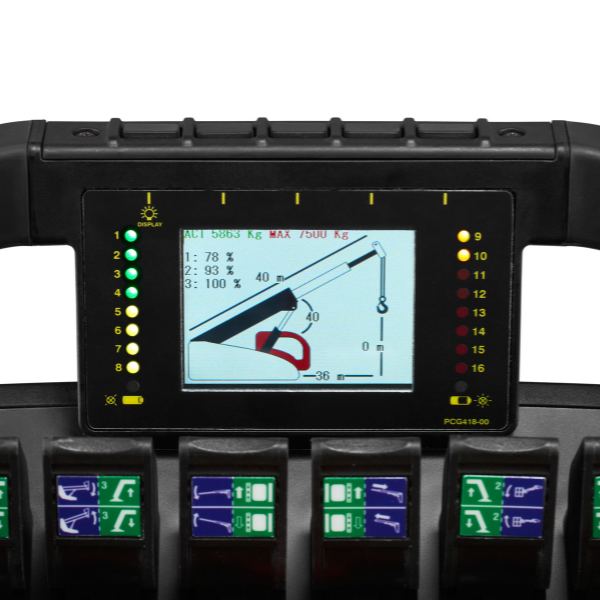

Vision system

2.8" TFT LCD display (320x240 pixels, 65536 colors)

The display is equipped with 16 LEDs and includes five buttons for interaction. An optional encoder is also available to facilitate navigation. Suitable for both indoor and outdoor environments.

Protection system

Marine environment protection

For marine environment applications, we use corrosion proof components and the remote control is treated with an corrossion proof solvent, ensuring lasting protection against corrosion and damage caused by salt and humidity.

Power supply	3.7 VDC
Radio frequency	870/915 MHz FHSS
Performance level of stop (GSS / EMS)	up to PL d, SIL 2 (EN ISO 13849-1)
Performance level of the automatic stop (ATS)	up to PL d, SIL 2 (EN ISO 13849-1)
Typical working range	100 m (330 ft)
Max number of functions	up to 2 multi-axis joysticks, up to 10 actuators and 2 side pushbuttons
Average usage time with fully charged battery (continuous use at 20°C / 68°F)	without display: 20 hours with display: 8 hours
Protection degree	IP65 (NEMA 4)
Operating and storage temperature	operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Dimensions	243x163x175 mm (9.57×6.42×6.89 in)
Weight	1,75 kg (3.8 lb)
Included accessories	shoulder or waist belt, battery charger, 2 extractable Li-Ion batteries
