T12B / T12C

Lift

The LIFT T12 pushbutton is a light and sturdy handheld transmitter with 12 dual-pression buttons  that introduces 3 side buttons for further customizable options. The increased number of buttons allows a clear programming setup and further reduce accidental activation errors.

All models have 4 x LEDs (Data Feedback) which can display machine information.

icona My Lift AutecMY LIFT AUTEC free smartphone app simplifies system configurations

icona pulsanti programmabili-png3 additional programmable
side buttons

icona autorizzazione avvio rrc-1T-Key to authorize the use of the handhelds; alternatively a dedicated PIN can be programmed

icona pannello personalizzabileCustomizable labeling: whole panel or pushbuttons symbols kit



Mail applications:

Overhead Creanes
Gantry, luffing, and flag cranes
Exceptional transport and roll-off trucks



Download the brochure
T12B / T12C-1
T12B / T12C-2
T12B / T12C-3
T12B / T12C-4
T12B / T12C-5
T12B / T12C-6
T12B / T12C-1
T12B / T12C-2
T12B / T12C-3
T12B / T12C-4
T12B / T12C-5
T12B / T12C-6

Options

Technology
Technology

App "MY LIFT AUTEC"

The 'MY LIFT AUTEC' app allows for quick and easy configuration of installation parameters, for LIFT series remote controls.

Certification
Certification

UL 508 certification

Certification that allows the use of the remote control in the territories of the United States and Canada. This authorization is granted exclusively when the device is used in combination with the ACRH11 base station.

TECHNICAL DATA SHEET

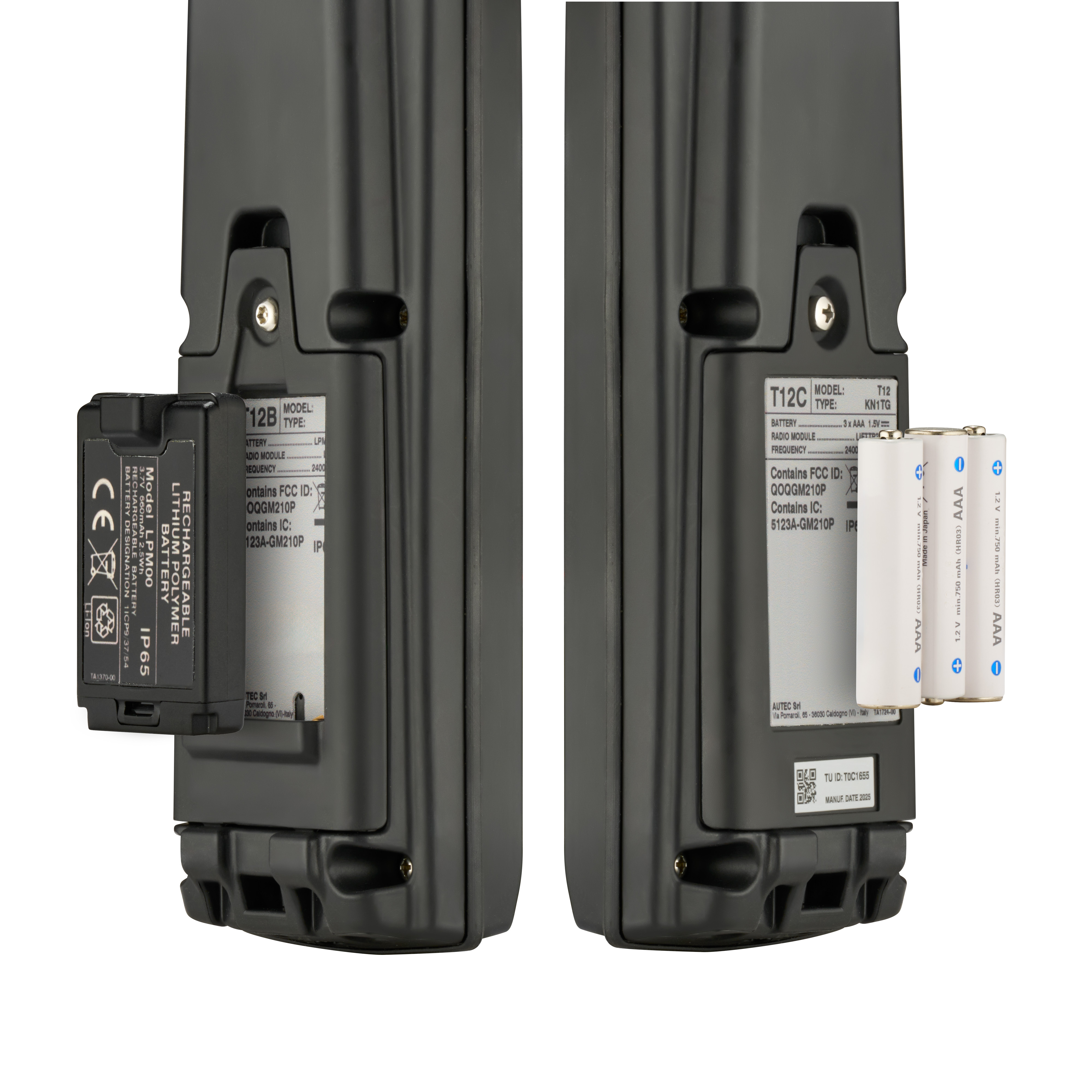

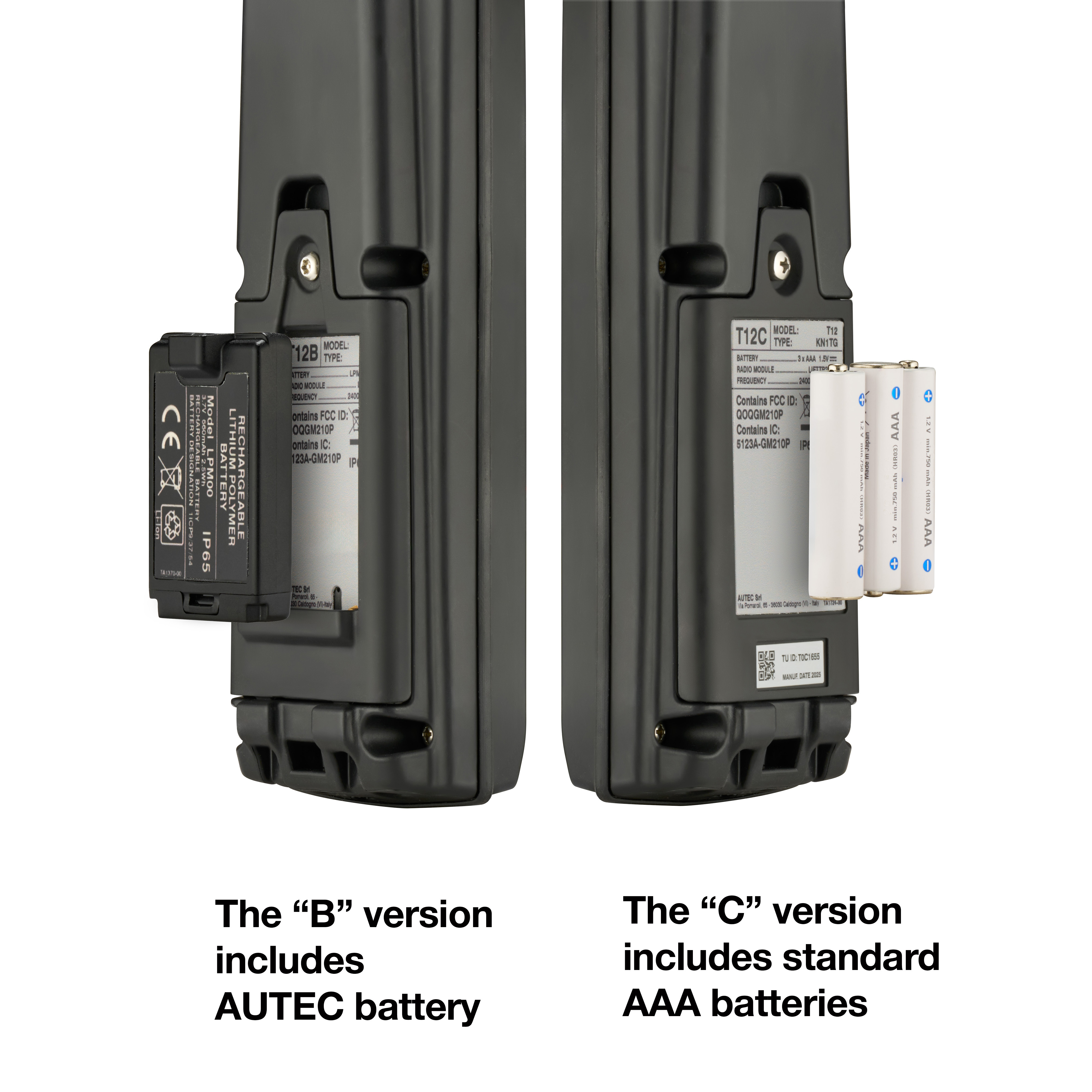

Power supply Li-Ion battery LPM00 (T12B)
n° 3 alkaline batteries AAA 1.5 V (T12C
Frequency band 2400 – 2483.5 MHz (40 channels)
GSS/EMS/ATS performance
(EN ISO 13849-1 and EN IEC 62745:2017
up to PL d, SIL 2
Typical working range 75 m (246 ft)
Average usage time with fully charged battery (continuous use at 20°C / 68°F) 38 h (T12B)
70 h with batteries 1.2 Ah (T12C)
88 h with batteries 1.5 Ah (T12C)
Antenna internal
Protection degree IP65 (Enclosure type 4)
Operating and storage temperature operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Dimensions

66.6x230.8x37.4 mm (2.62x9.08x1.47 in)

Weight

~0.35 kg (~ 0.77 lb)

Contact us for customized support.
