DJB

Dynamic+

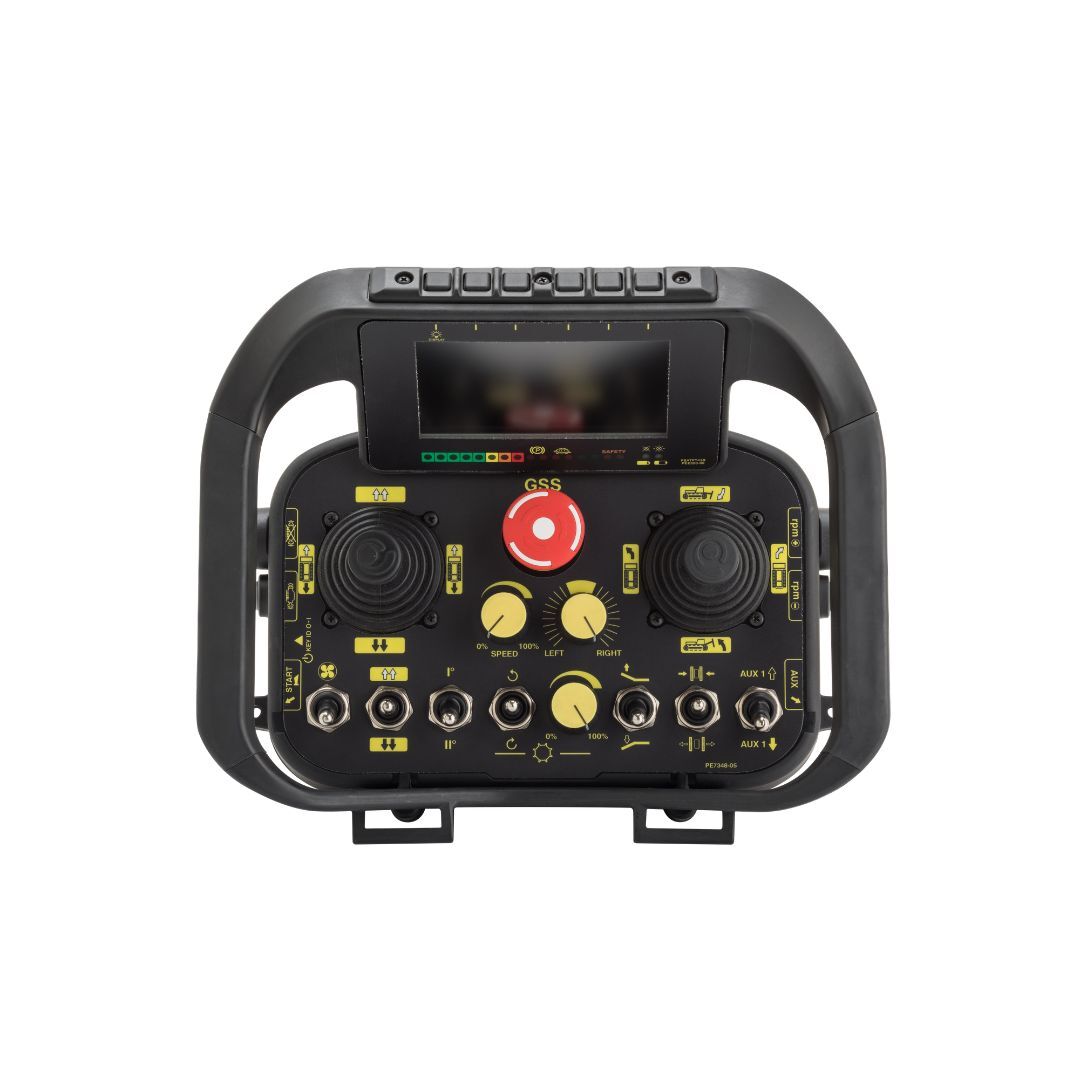

The highly configurable DJB transmitting unit is suitable for heavy duty environments. It has a large number of controls and is sturdy, a characteristic of all AUTEC products.
This joystick transmitting unit, which is user friendly thanks to a portable system specially designed to assist the operator, has up to 12 proportional controls and up to 64 digital controls with a data feedback option that shows the information received from the machine on a colour graphic display or panel LED.

Accessories
Back strap
Removable Li-Ion battery and battery charger

Options

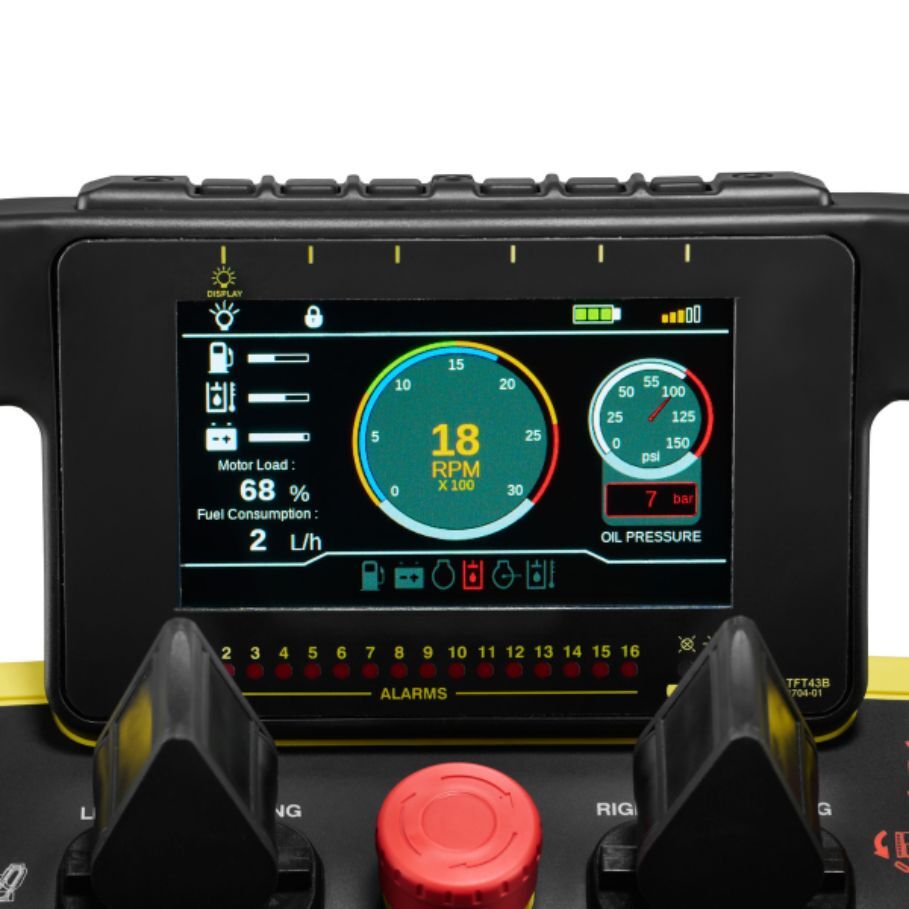

4.3" TFT LCD display (480x272 pixels, 65536 colours)
7" TFT LCD display (800x480 pixels, 65536 colours)

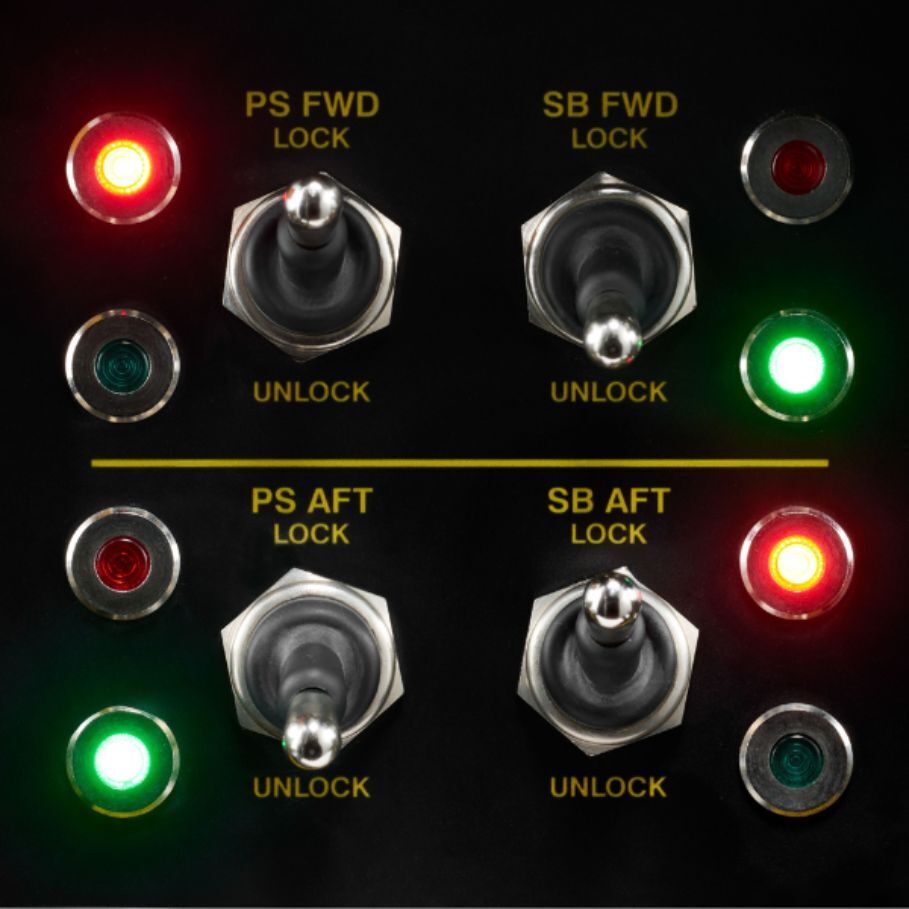

LEDs on panel
Cable control
External buzzer
IR sensor
Tilt or impact sensor (only with HIC control expansion board or 4.3" or 7" display)
Marine environment protection
3-axis joystick
ID internal tx memory (if Key ID 0-1 is not present)

Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button

TECHNICAL DATA SHEET

Power supply 7.4 VDC (Li-Ion Battery)
7.2 VDC (NiMH Battery)
Frequency band
870/915 MHz and 2.4 GHz FHSS
Hamming distance
≥ 15
Typical working range
100 m
330 ft
Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display 35 h (Li-Ion Battery)
Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display
with 4.3”/7" display: 8 h (Li-Ion battery)
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
up to PL e, cat. 4 / SIL 3
Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061)
up to PL d, cat. 3 / SIL 2
Protection degree
IP65 (NEMA 4)
Operating and storage temperature
operating: (-25 °C) ÷ (+55 °C) / (-13 °F) ÷ (+130 °F)
storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F)
Dimensions

426 x 243 x 214 mm
16.80 x 9.60 x 8.40 in

Weight

5.5 kg
12.1 lb

Base station

Contact us for customized support.
