AMT

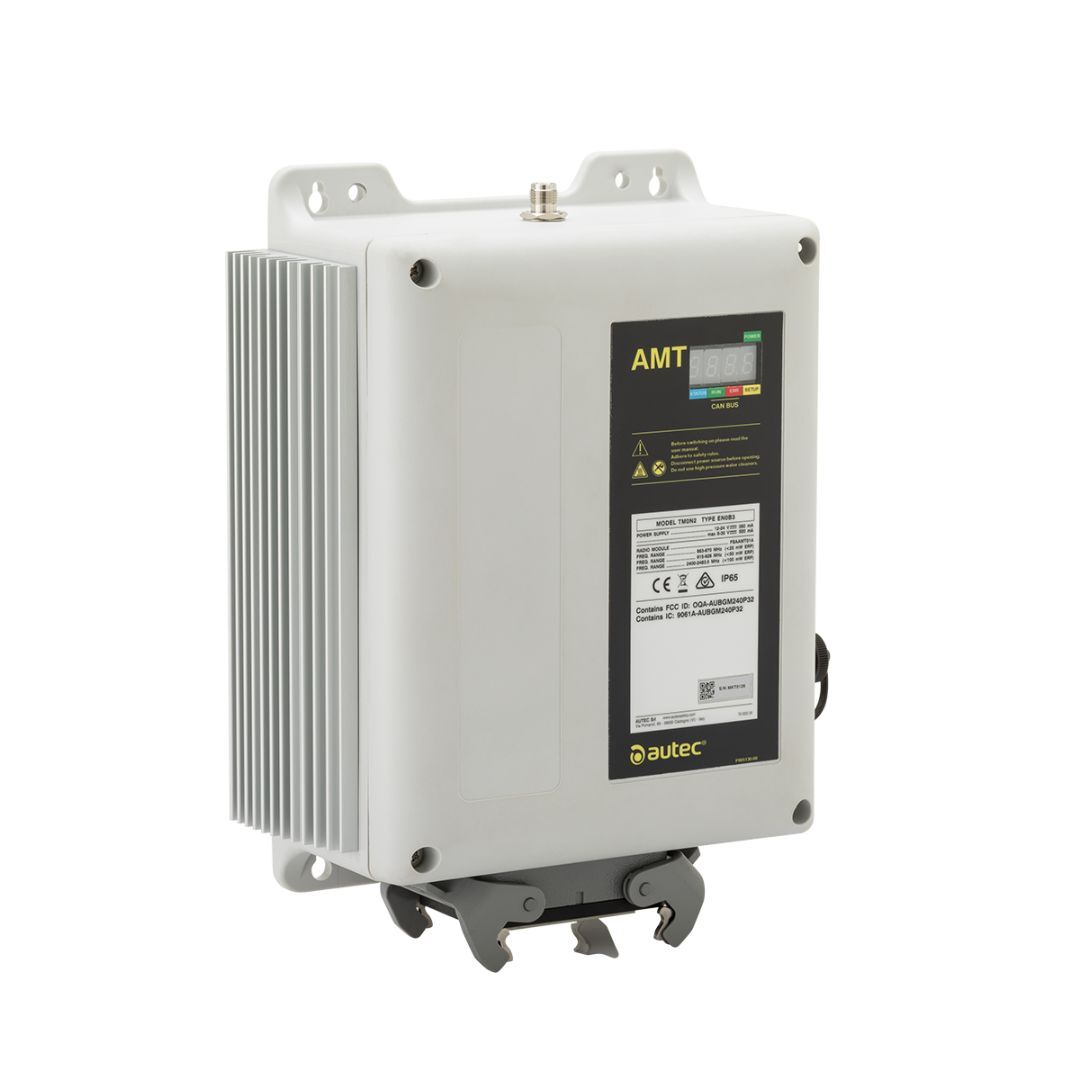

The AMT is an analog receiving unit from the Dynamic+T series. The Triband technology provides three frequency bands in a single module, which can be used in accordance with local regulations. The pairing procedures between the transmitter/receiver units and the frequency switching can be performed via radio. The AMT receiver features 2 STOP outputs, 2 STOP or UMFS outputs, up to 164 analog outputs, and up to 170 digital outputs. The AMT receiver also features a 4-digit display for diagnostics. The standard antenna is external and can be extended by 1 m or 3 m. It can also be part of a Take&Release system. AMT receiver provides maximum flexibility through the CODESYS® development environment, the standard for programming according to IEC 61131-3.
TECHNICAL DATA SHEET
| Power supply |
8-30 VDC
|
|
Configurable radio frequency
|
870 MHz 915 MHz 2.4 GHz |
| Performance level of stop (GSS / EMS) | up to PL e, SIL 3 (EN 13849-1) |
| Performance level of the automatic stop (ATS) | up to PL e, SIL 3 (EN 13849-1) |
|
Performance level of Unintended Movements From Standstill (UMFS)
|
up to PL e, SIL 3 (EN 13849-1) |
| Number of outputs | 2 STOP, 2 STOP or UMFS, up to 164 analog and up to 170 digital |
| Rated current of the command outputs | 3A |
| Rated current of STOP/ UMFS outputs | 7.5A |

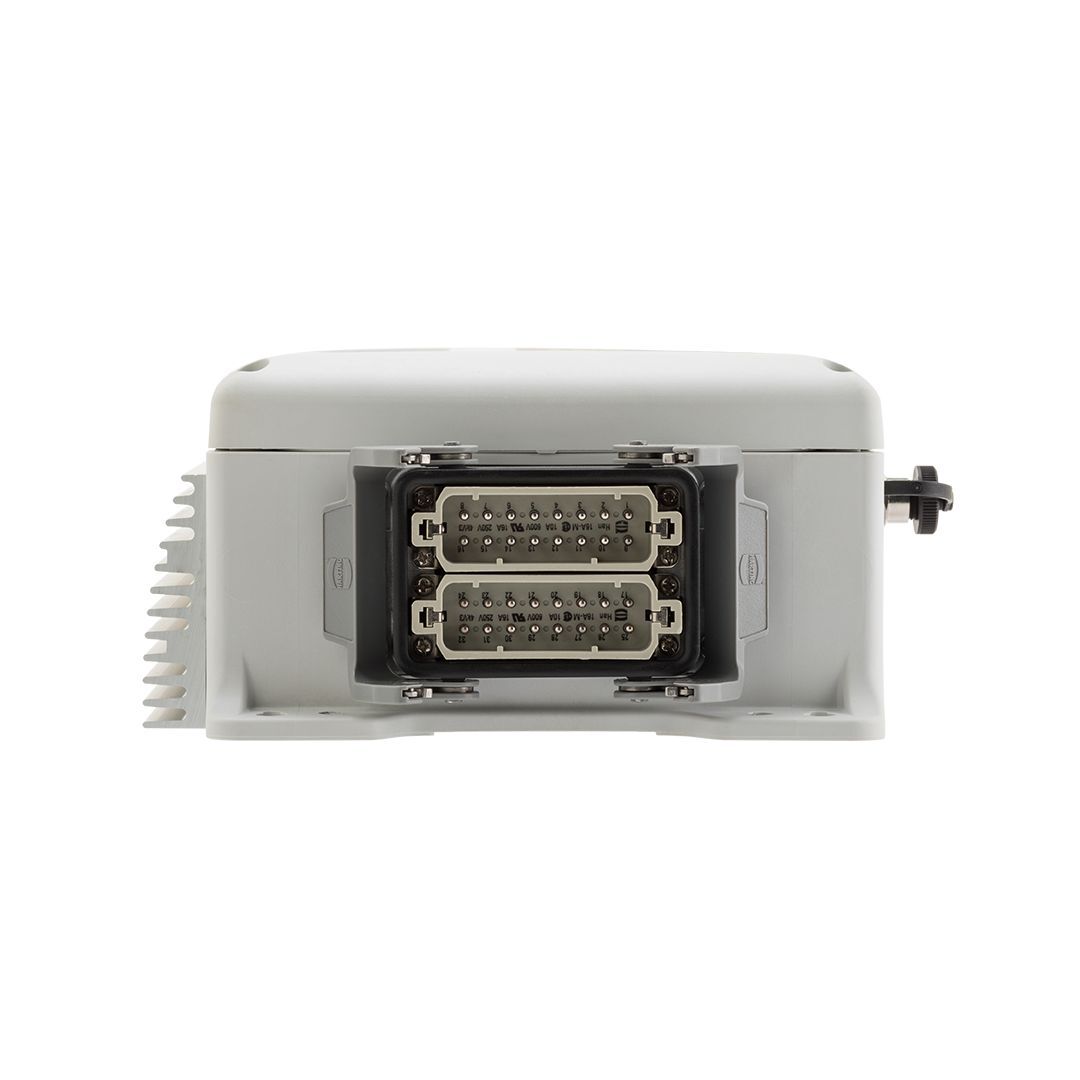

| Connecting interface | M12 8 or 5 pin connector, Harting 32 / 40 / 50 / 72 / 108 pin connector |
| Type of output | digital - PWM - voltage - 2 CAN outputs |
| Communication protocols | CANopen, J1939 |
| Antenna | external |
| Expansion boards | up to 8 proportional |
| Protection degree | IP65 |
| Operating and storage temperature | operating: (-25 °C) ÷ (+70 °C) / (-13 °F) ÷ (+158 °F) storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F) |
|
Dimensions
|
290x185x105 mm (11.42x7.28x4.13 in) |
| Weight | 3 kg (6.61 Ib) |
