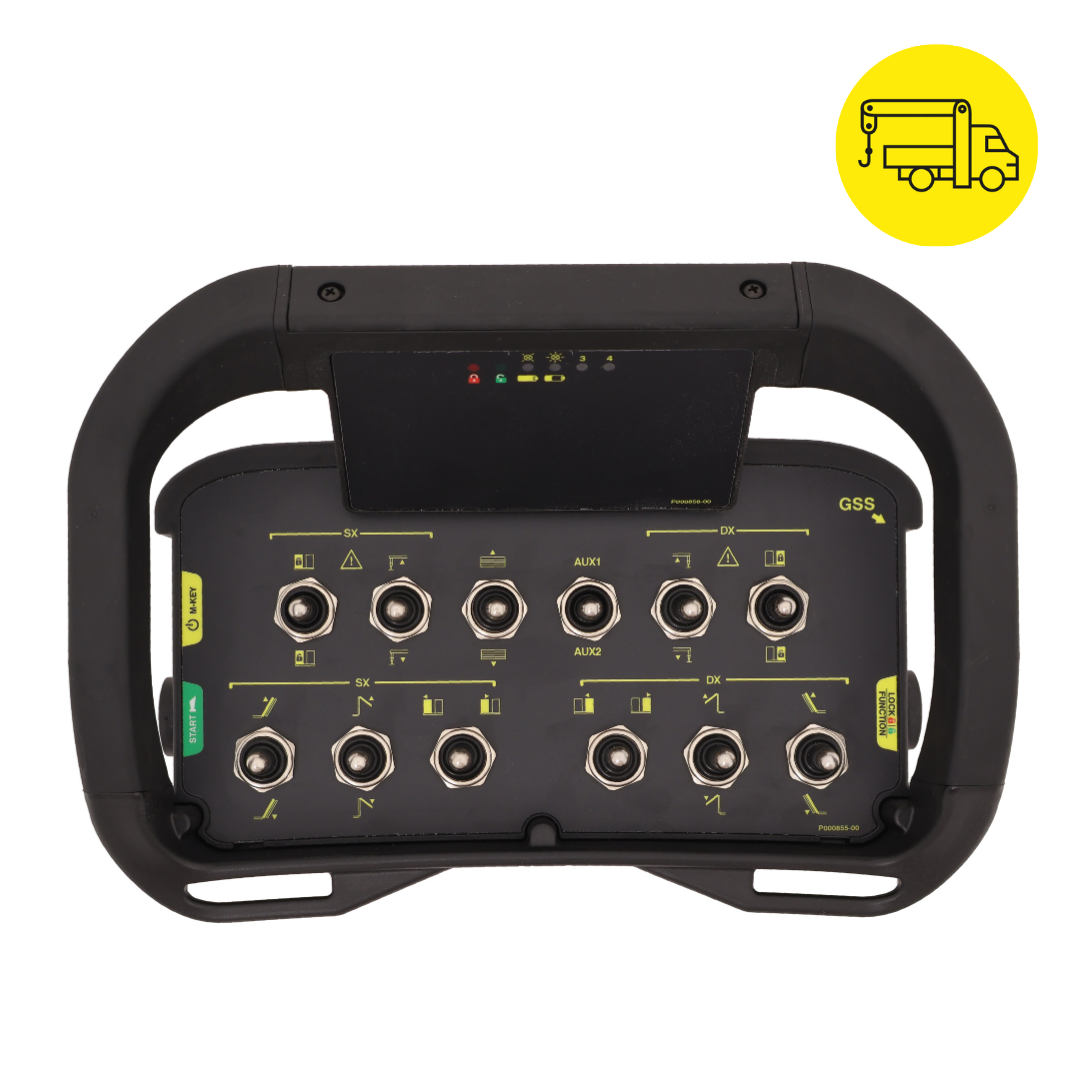

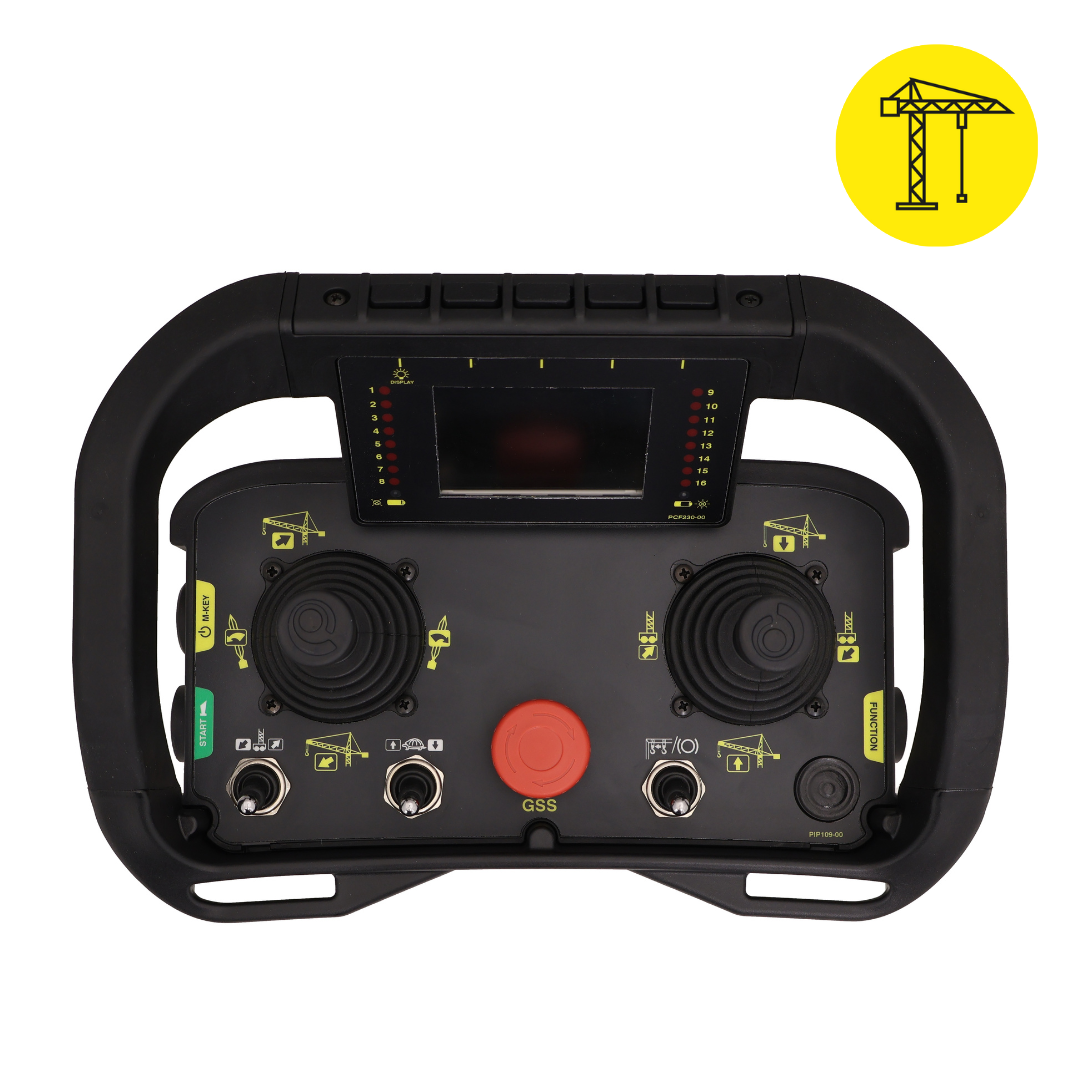

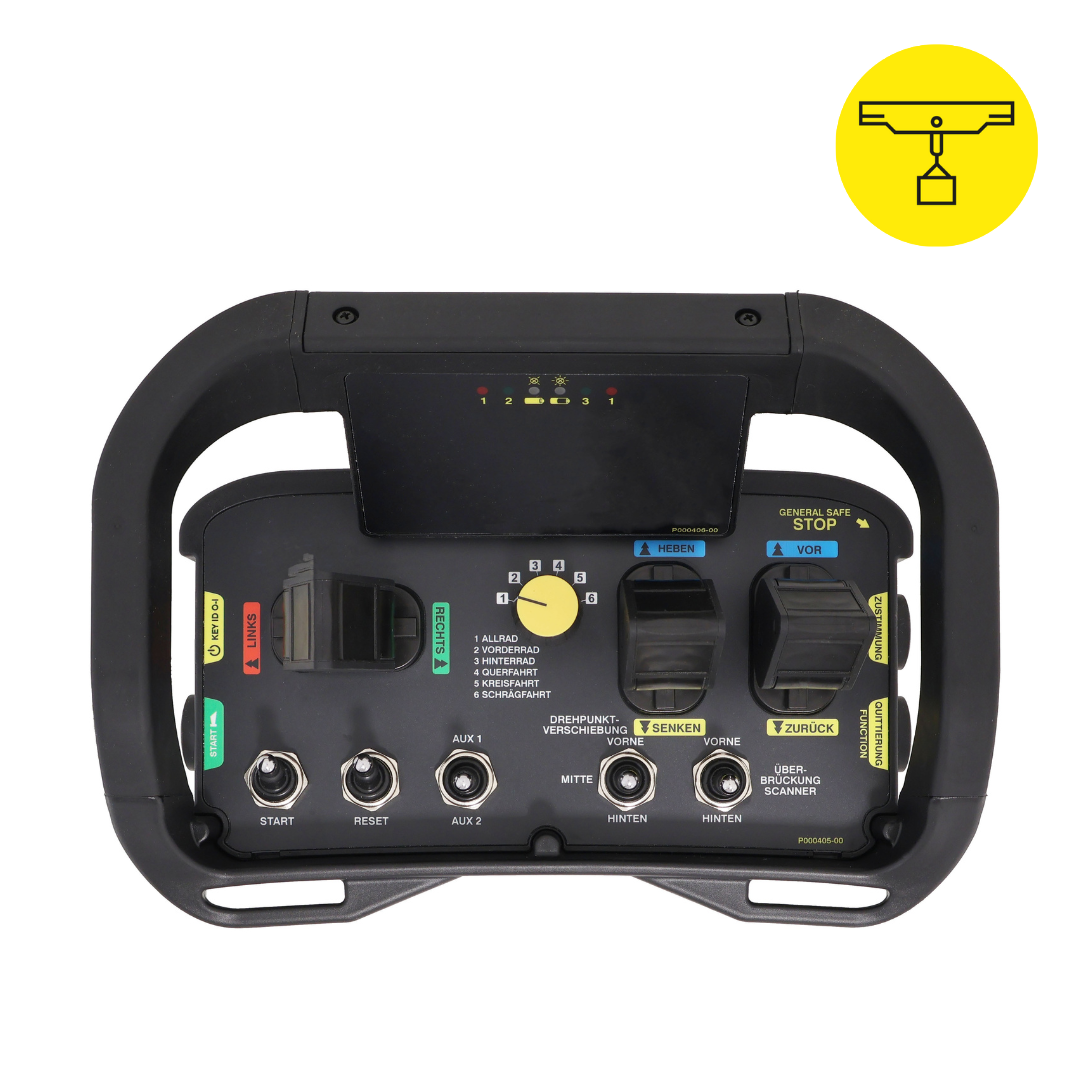

AJN is the compact-size LINK model designed for the AIR series. This version is suitable for a lot of digital applications requiring up to 2 multi-axis joysticks or up to 6 linear joysticks, and up to 8 actuators. AJN is an ergonomic and light-to-carry device for the operator, and it is ideal to control cranes, overhead travelling cranes and small mobile vehicles. A 2.8” TFT LCD colour display shows real-time information about the commands and the machine status. AJN is available with two-way FHSS radio link in the 870 / 915 MHz frequency band. This product is compatible with all AIR receiving units.

Shoulder harness
Waist belt
Removable NiMH or Li-Ion battery and battery charger

2.8" TFT LCD Display (240x320 pixel, 65K colori)
4-32 signalling LEDs
Cable control
Marine environment protection
Zero-G and IR sensor
External buzzer

Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button


Power supply
7.4 VDC with LPM02 or MBM06MH battery
Frequency band
870 - 915 MHz FHSS
Typical working range
100 m (330 ft)
Average usage time with fully charged battery (continuous use at 20°C / 68°F)
with LPM02 battery:
- 24 h without display
- 10 h with display 2.8”
with MBM06MH battery:
- 12 h without display
Protection degree
IP65 (NEMA 4)
Operating and storage temperature

operating: (-20 °C) ÷ (+55 °C) / (-4 °F) ÷ (+131 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)

Safety performance of the GSS/EMS/ATS function
up to PL e, SIL 3 (EN ISO 13849-1/EN IEC 62061)

243 x 169 x 175 mm
9.6 x 6.6 x 6.8 in

1,75 kg
3.85 lb

Contact us for customized support.
