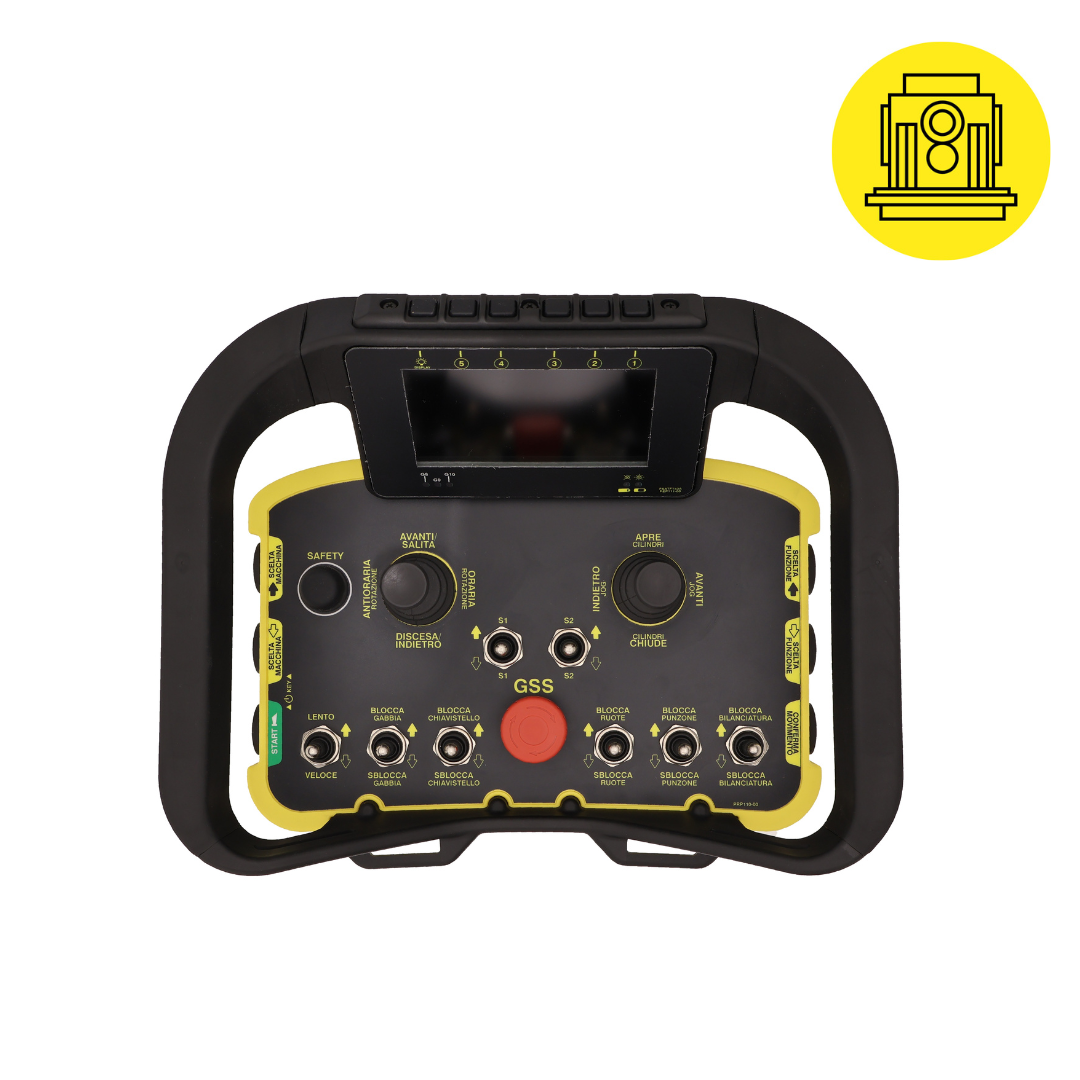

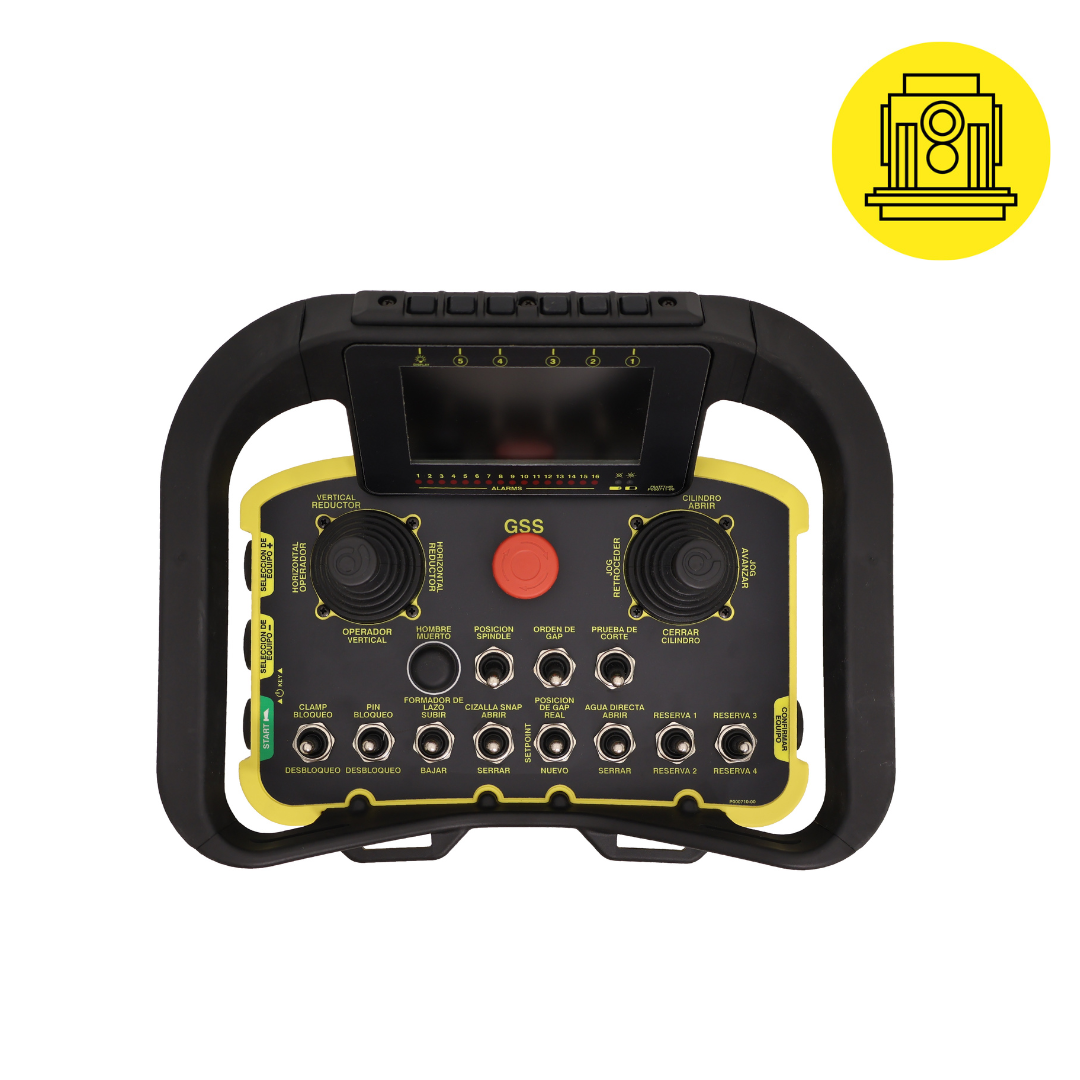

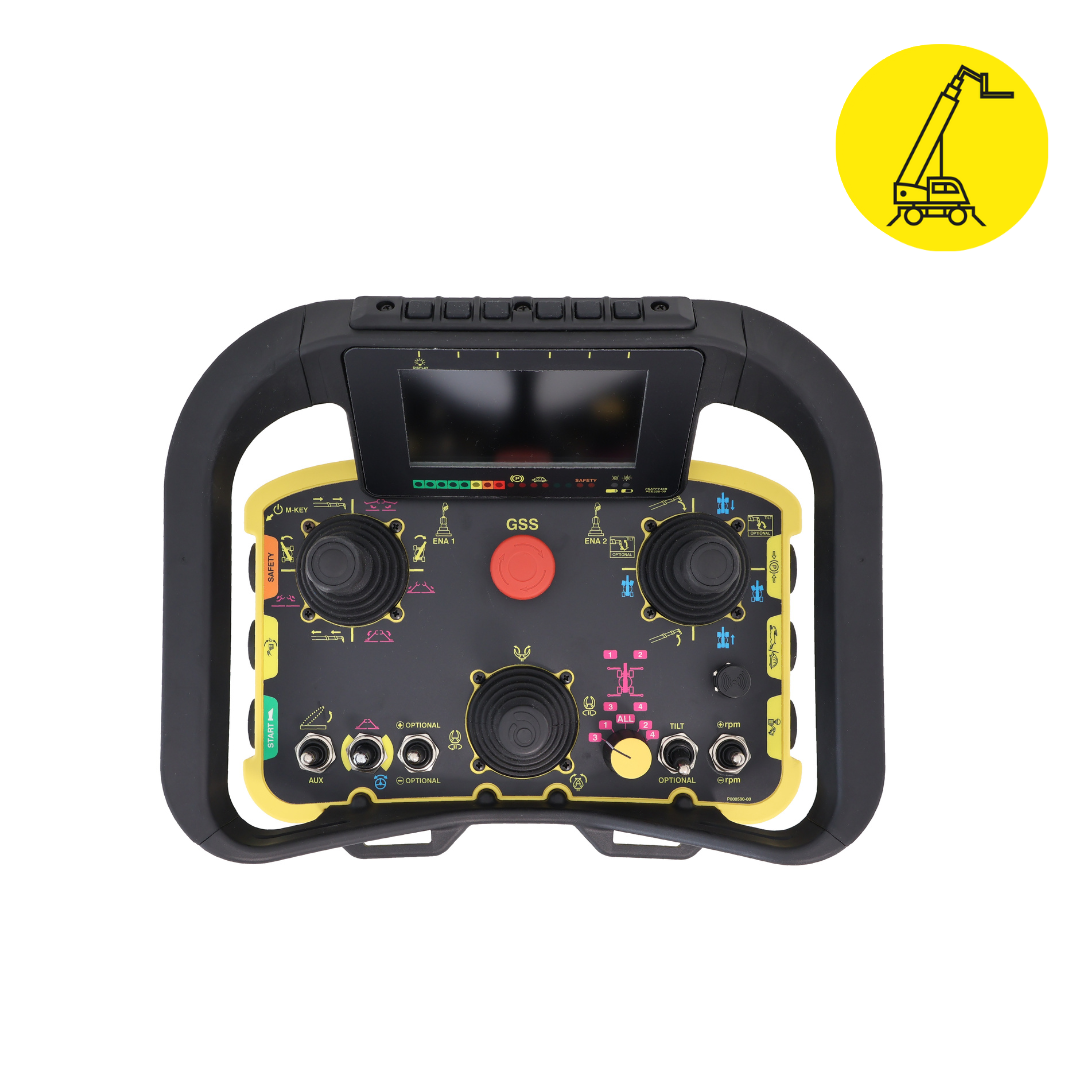

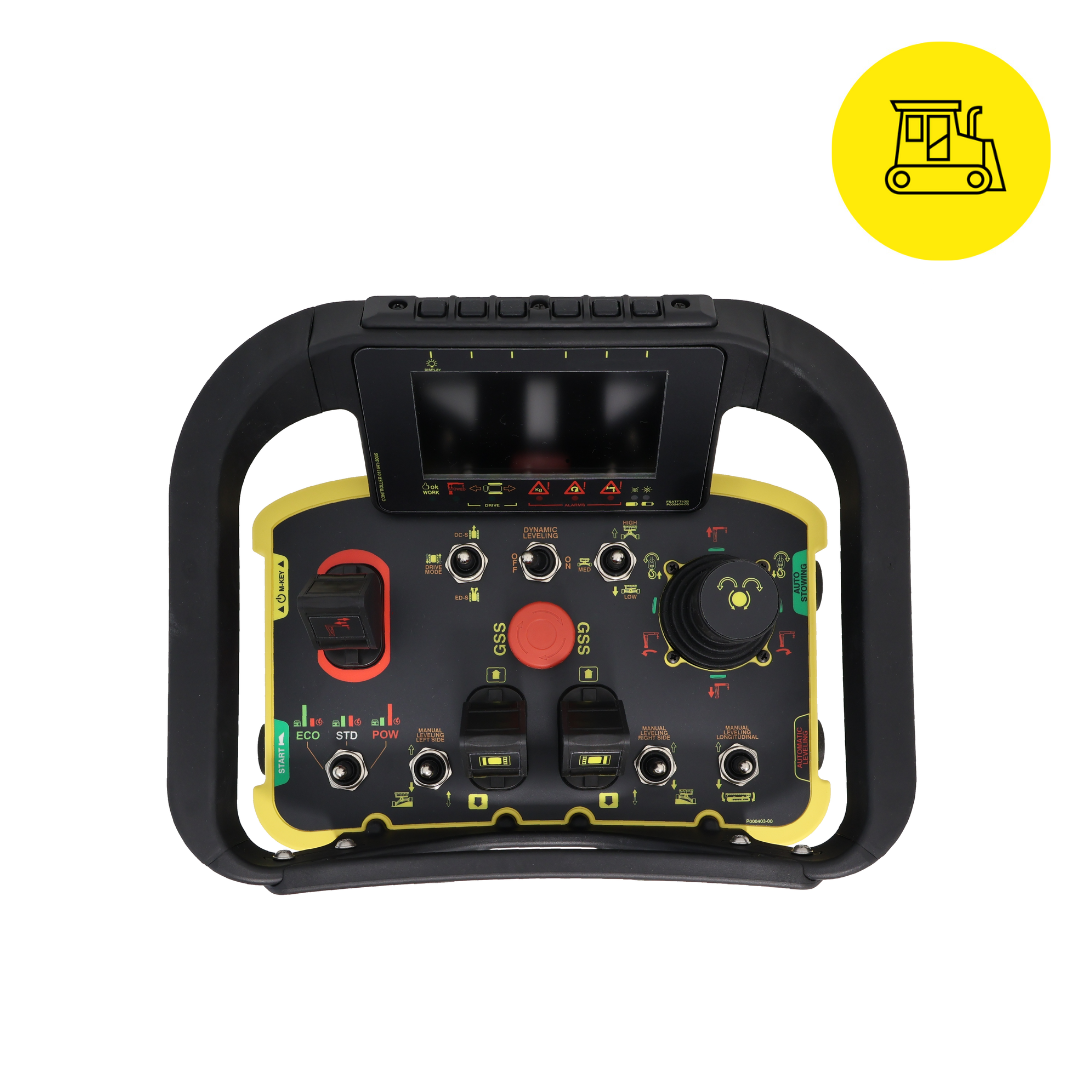

R-PRO is the AUTEC size regular portable station made to command self-propelled hydraulic machines, especially in the mining and construction sites. It is equipped with multiple actuators, joysticks, and side buttons, specifically designed to offer the best performance with this product.
Two frames are available: one accommodates the data-feedback system (with display or LED array) while the second does not. This provides ergonomic benefits for the operator, by reducing size and weight.

Waist belt
Shoulder strap
Extractable Li-Ion battery and charger

4.3" TFT LCD display (480x272 pixels, 65536 colours)
4.1" TFT LCD display (320x160 px monochromatic)
32 signalling LEDs
LEDs on panel
Cable control
Additional protection for joystick
Marine environment protection
Zero-G and IR sensor
External buzzer

Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button


Power supply
7.4 VDC with LPM02 or LPM04 battery
Frequency band
870 - 915 MHz, 2.4 GHz, FHSS
Typical working range 100 m (330 ft)
Average usage time with fully charged battery (continuous use at 20°C / 68°F) with LPM02 battery:
- 18,5 h without display
- 15 h with display 4.1”
with LPM04 battery:
- 35 h without display
- 28 h with display 4.1”
- 8 h with display 4.3”
- 8 h with 32 LEDs
Protection degree IP65, NEMA 4
Operating and storage temperature -25 °C ÷ +55 °C (-13 °F ÷ +130 °F)
-40 °C ÷ +85 °C (-40 °F ÷ +185 °F)
Safety performance of the GSS/EMS/ATS function up to PL e, SIL 3 (EN ISO 13849-1/EN IEC 62061)
UMFS function up to PL d, cat. 3 / SIL 2 (EN ISO 13849-1/EN IEC 62061)
Dimensions 289x231x199 mm (11.4x9.1x7.8 in) - with display
289x193x199 (11.4x7.6x7.8 in) - without display
Weight 3,2 kg (7.1 lb)

Base station
