COMPACT is a portable unit for the remote control of machinery in multiple industries. With a highly reliable radio link and compliance to functional safety requirements this "compact" belt and harness transmitter is suited for use in demanding environments. Studied with an ergonomic shape to prevent involuntary activations and issues due to external interference during operation, its functional-area is optimized for a comfortable and easy access/grip of the actuators on top and sides. The top-frame integrate comfortable rubber handles and a TFT 2.8" color display. In all configurations mechanical and chemical resistance is granted as well as IP65 and 1.5 m fall.

Shoulder strap or waist belt
Extractable NiMH or Li-Ion battery and charger

Cable Control

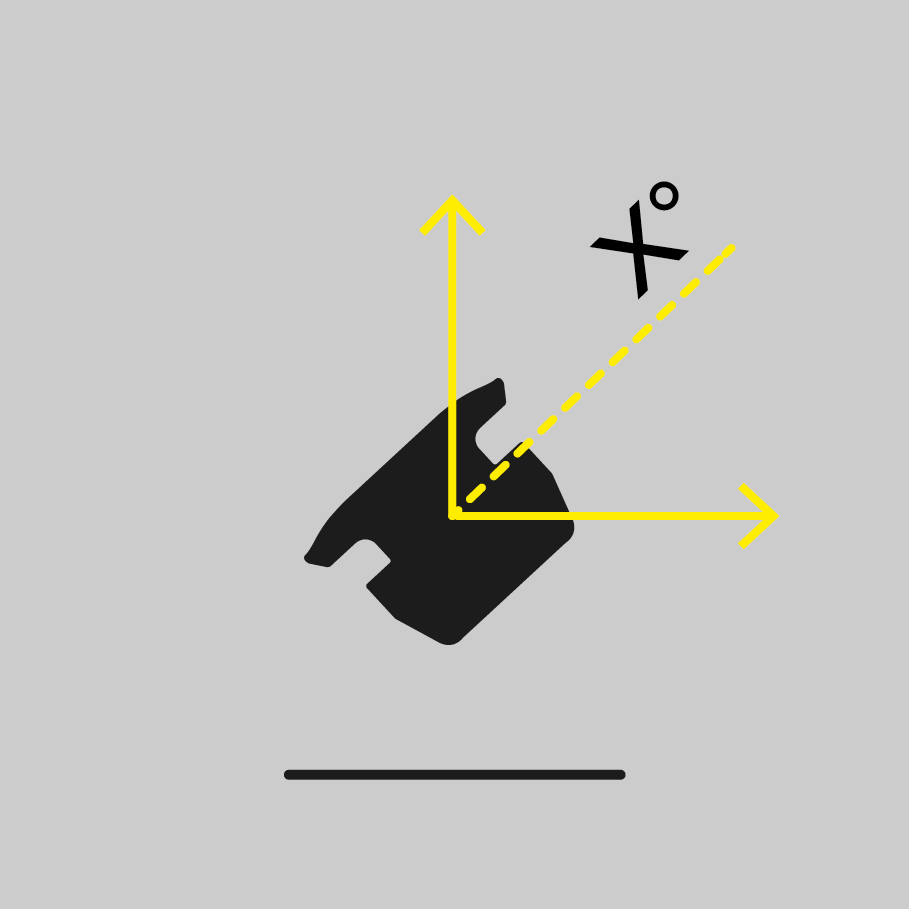

Zero-G Sensor
IR Sensor
External Buzzer

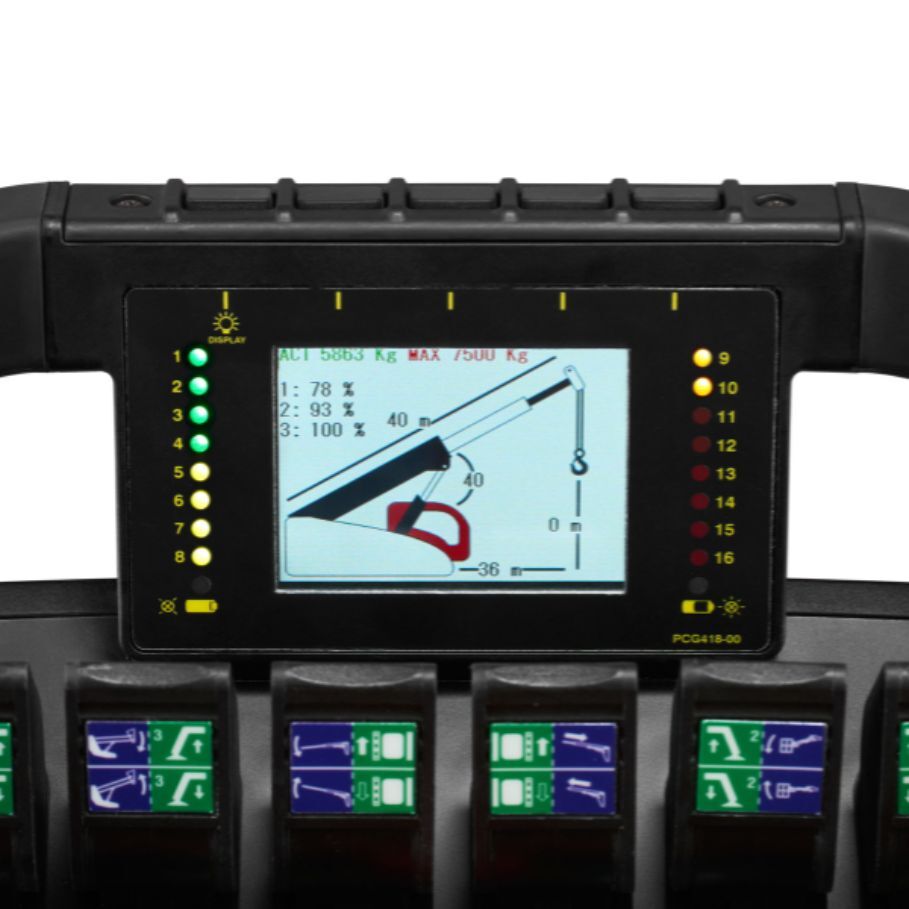

2.8" TFT LCD graphic display (240x320 pixel, 65536 colors)

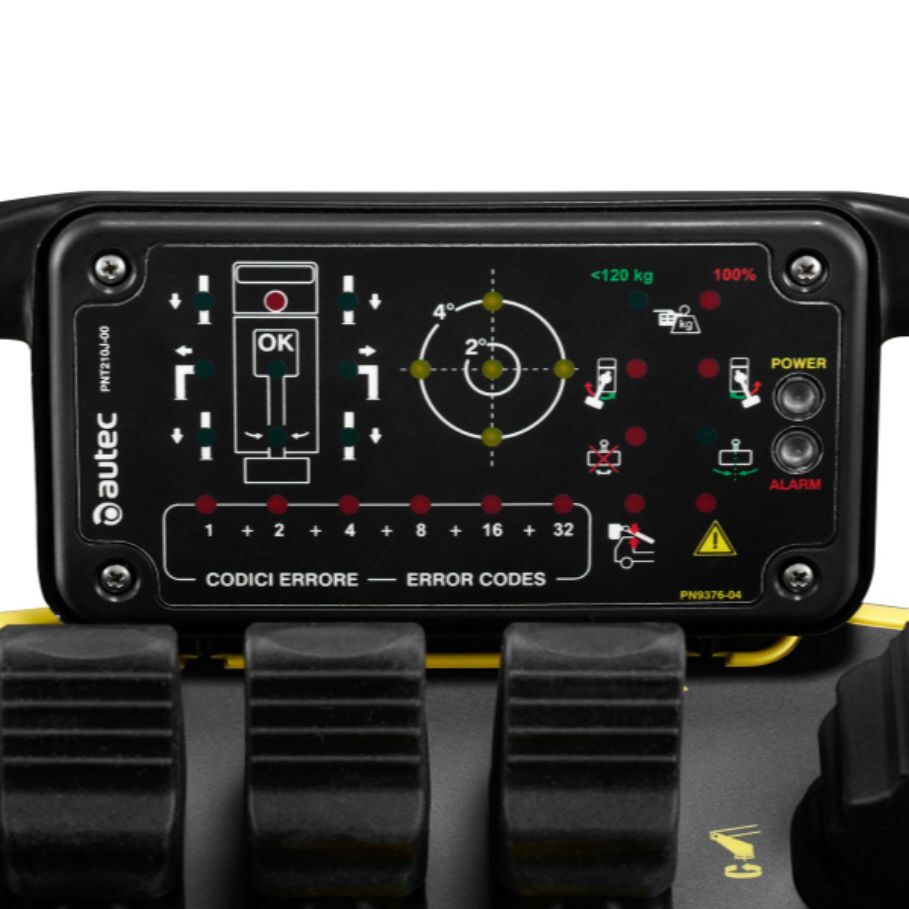

32 LEDs

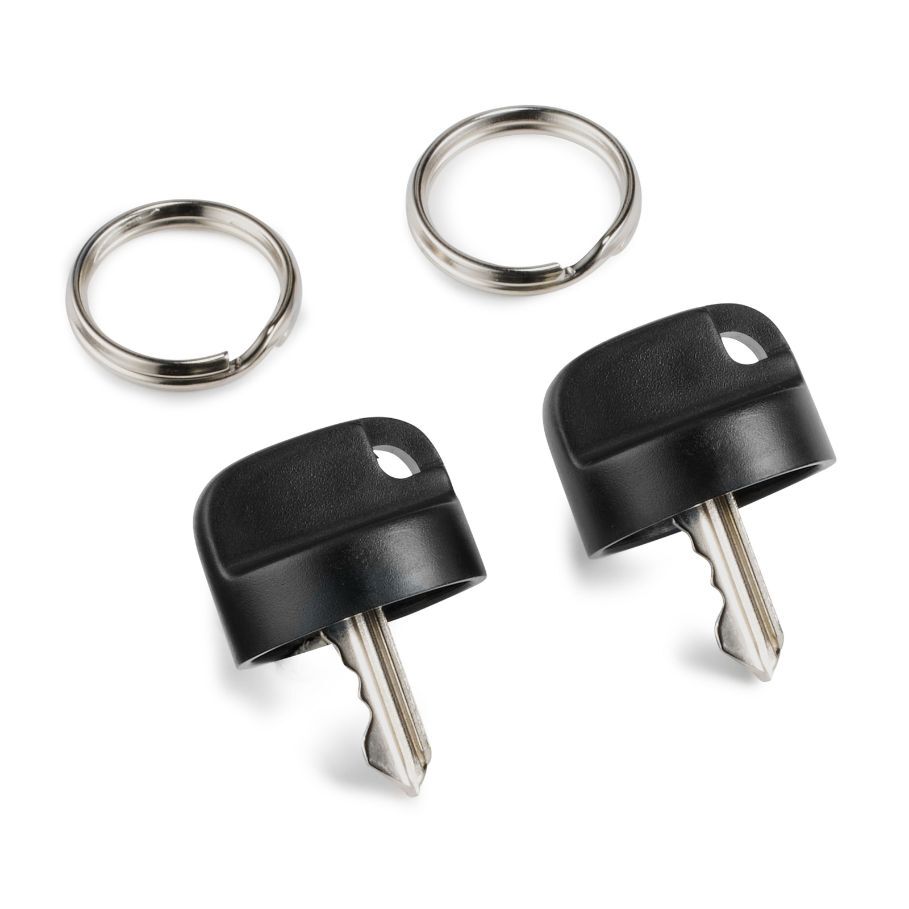

Removable Mechanical key

Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button


Power supply
7.2 VDC (NiMH Battery)
7.4 VDC (Li-Ion Battery)
Frequency band
870/915 MHz FHSS
Hamming distance
Typical working range
up to 100 m (330 ft)
Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display
24 h (Li-Ion Battery)
12 h (NiMH Battery)
Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display
with 2.8” Display: 10 h (Li-Ion Battery)
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
up to PL e, SIL 3
Protection degree
IP65 (NEMA 4)
Operating and storage temperature

operating: (-20°C )÷ (+55°C) / (-4°F) ÷ (+130°F)
storage: (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F)


260 x 177 x 161 mm
10.2 x 6.9 x 6.3 in

1.8 kg
3.9 lb

Contact us for customized support.
