T8B / T8C

Lift

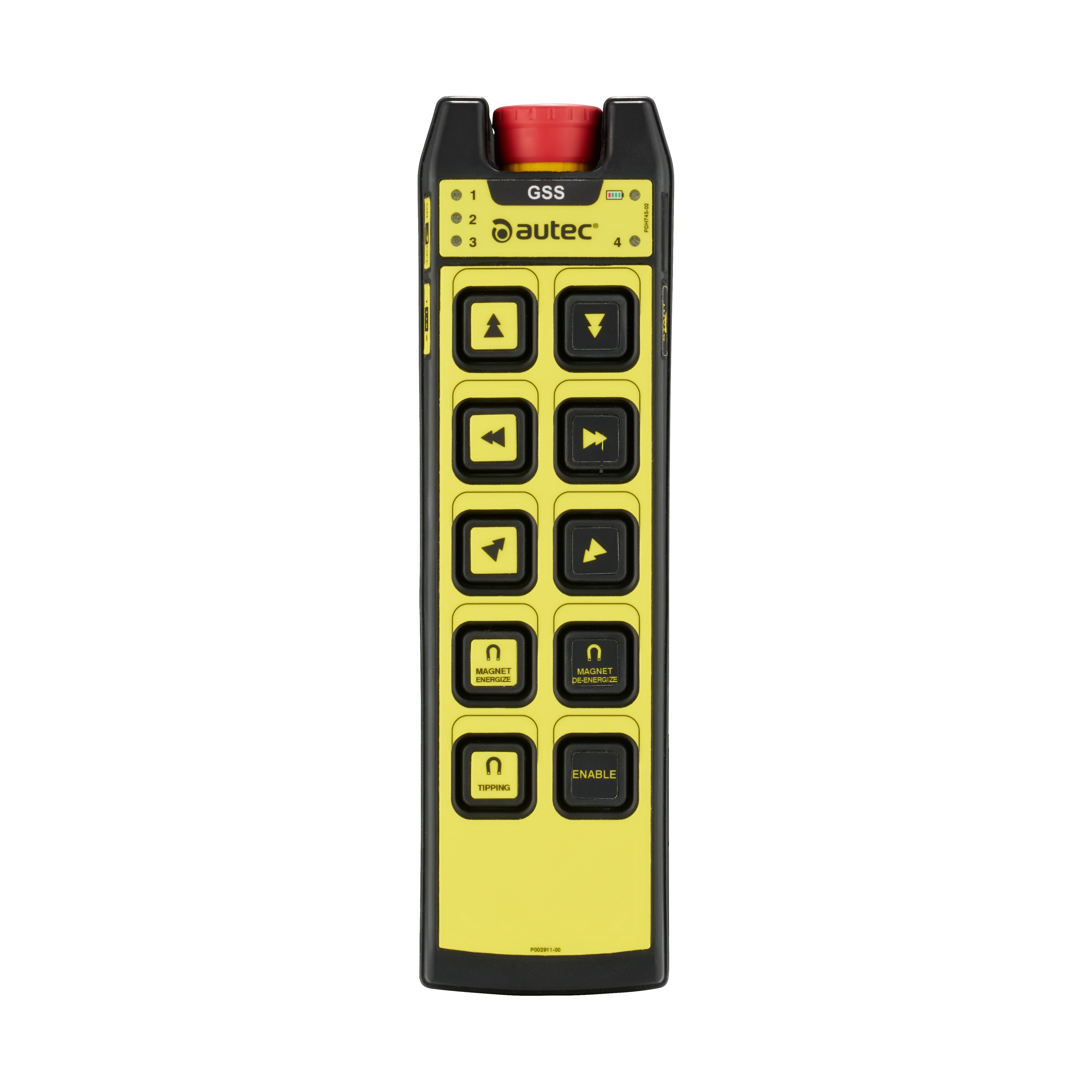

Light and sturdy handhelds with 8 dual-depression buttons. The lowest button on the right side is dedicated to the START function, and may optionally be used to sound the machine horn. This model has 4 x LEDs which can display the currently-selected hoist(s) in dual-hoist cranes, or other machine information. Power supply can be provided by 2 swappable Li-ion batteries ("B" version, with battery charger), or by 3 x AAA standard internal batteries ("C" version).

The main strengths of the new AUTEC LIFT models are:
• new radio communication on 2.4 GHz, takes advantage of latest Bluetooth® technology with additional AUTEC custom security protection;
• “MY LIFT AUTEC” a smartphone app (IOS and Android) that simplify system configuration;
• optimized compact base station, with a semi-transparent cover, an integrated high-intensity flash lamp, optional integrated horn signal and cable gland or multiple plugs connection.

Accessories
T-Key to authorize the use of the handhelds which excludes the use of the PIN.


Options

img-1
Technology

App "MY LIFT AUTEC"

The 'MY LIFT AUTEC' app allows for quick and easy configuration of installation parameters, for LIFT series remote controls.

img-2
Certification

UL 508 certification

Certification that allows the use of the remote control in the territories of the United States and Canada. This authorization is granted exclusively when the device is used in combination with the ACRH11 base station.

TECHNICAL DATA SHEET

Performance of the Emergency Stop function (EMS) SIL 2 / PL d; cat. 3
Performance of the General Safe Stop function (GSS)
SIL 2 / PL d; cat. 3
Performance of the Automatic Stop function (ATS) SIL 2 / PL d; cat. 3
Power supply Li-Ion battery LPM00 (T8B)
n° 3 alkaline batteries AAA 1.5 V (T8C)
Frequency band 2400 – 2483.5 MHz (40 channels)
Typical working range 75 m (246 ft)
Average usage time with fully charged battery (continuous use at 20°C / 68°F) 45 h (T4B)
90 h with batteries 1.2 Ah (T8C)
110 h with batteries 1.5 Ah (T8C)
Antenna internal
Protection degree IP65 (Enclosure type 4)
Operating and storage temperature operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Dimensions

64.5x179x37.5 mm (2.54x7.05x1.48 in)

Weight

0.25 kg (0.55 lb)

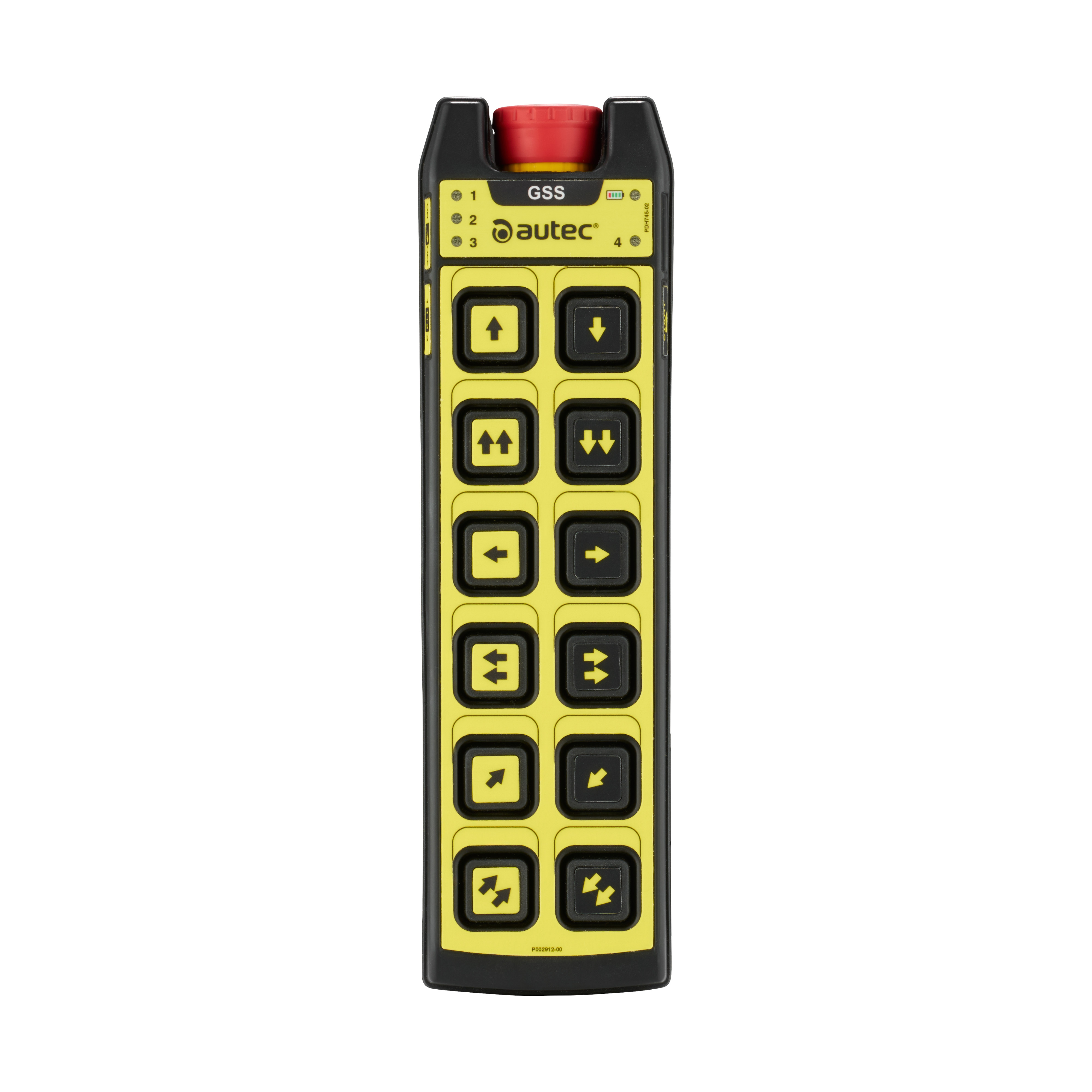

Products of the same series
