SK8B

Air

The portable station Sidekick SK8B, of the AIR series, is designed by AUTEC bigger than the SK4 model to manage more functions, but with the same robustness and reliability.

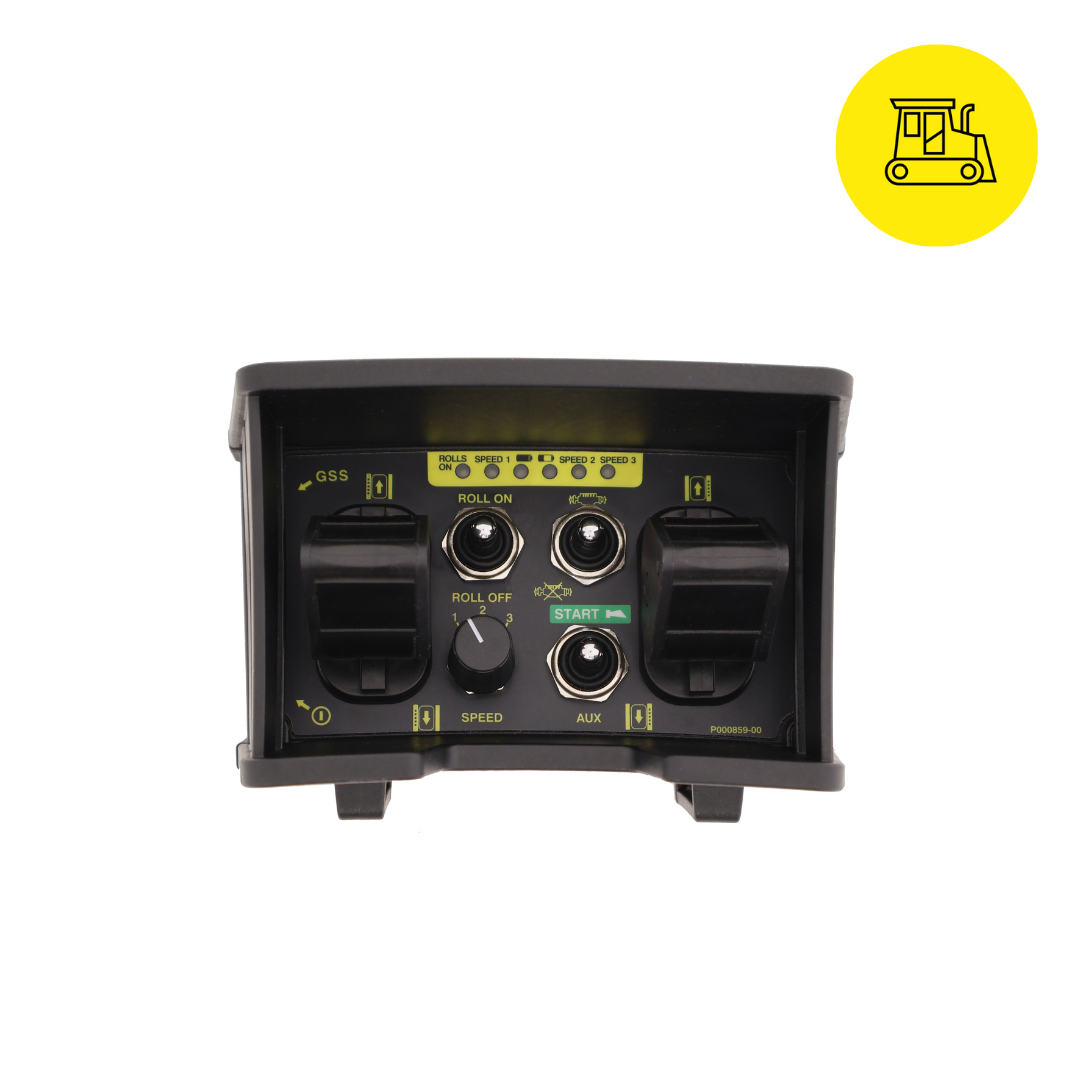

This unit allows for up to 8 panel actuators or up to 6 with a 1.8” color display. Is also available with a raised protection cover designed for configurations with 1 or 2 linear joysticks. Externally replaceable lithium-ion battery as power supply. It is supplied with standard dual-band 870 / 915 MHz radio frequencies and an automatic open channel search in FHSS (Frequency Hopping Spread Spectrum).

Accessories
Waist belt
Removable Li-Ion battery and battery-charger

Options

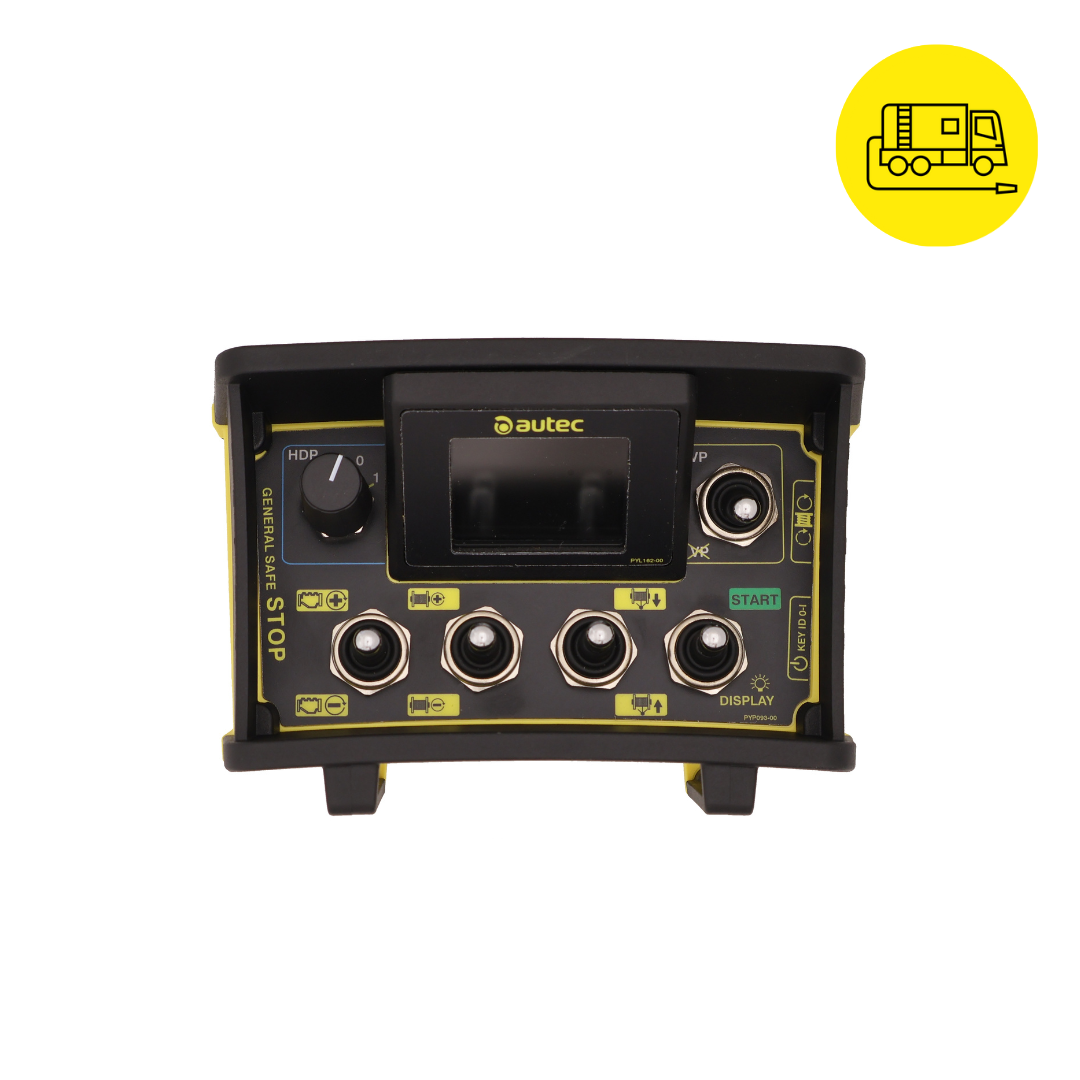

1.8" color display
Sensor that act if the portable station is angled, collides with something or falls

Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button

TECHNICAL DATA SHEET

Power supply
7.4 VDC with external Li-ion battery
Frequency band
870 MHz and 915 MHz FHSS

Typical working range
100 m (330 ft)
Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display
24 h
Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display 10 h
Protection degree
IP65, NEMA 4
Operating and storage temperature

operating: (-20 °C) ÷ (+55 °C) / (-4 °F) ÷ (+130 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)

Safety performance of the GSS/EMS/ATS function
up to PL e (UNI EN ISO 13849-1:2016)
Dimensions

144 x 100 x 121 mm
5.67 x 3.94 x 4.76 in

Weight
0,75 kg
1.65 lb

Contact us for customized support.
