PJM

Dynamic+P

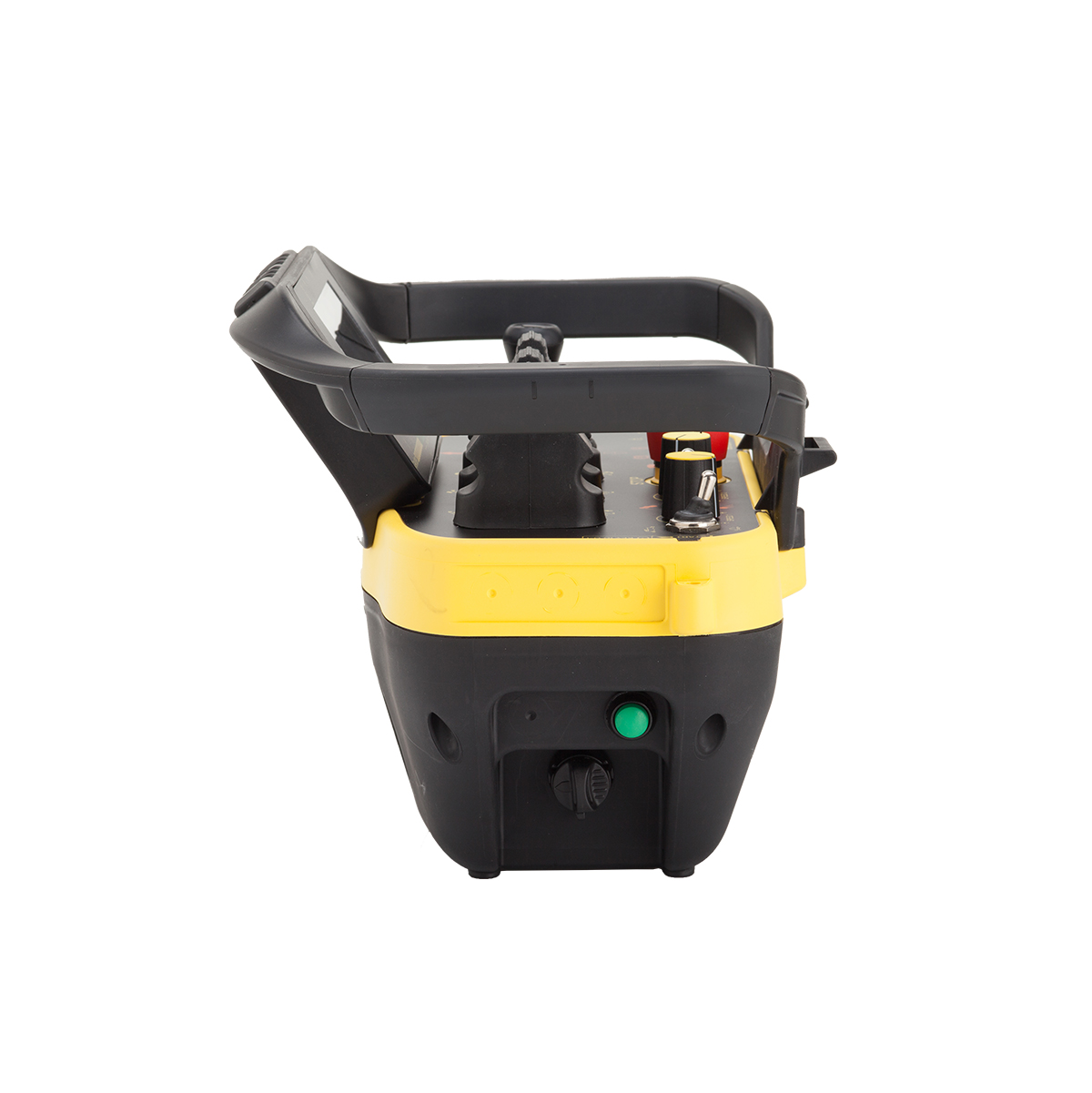

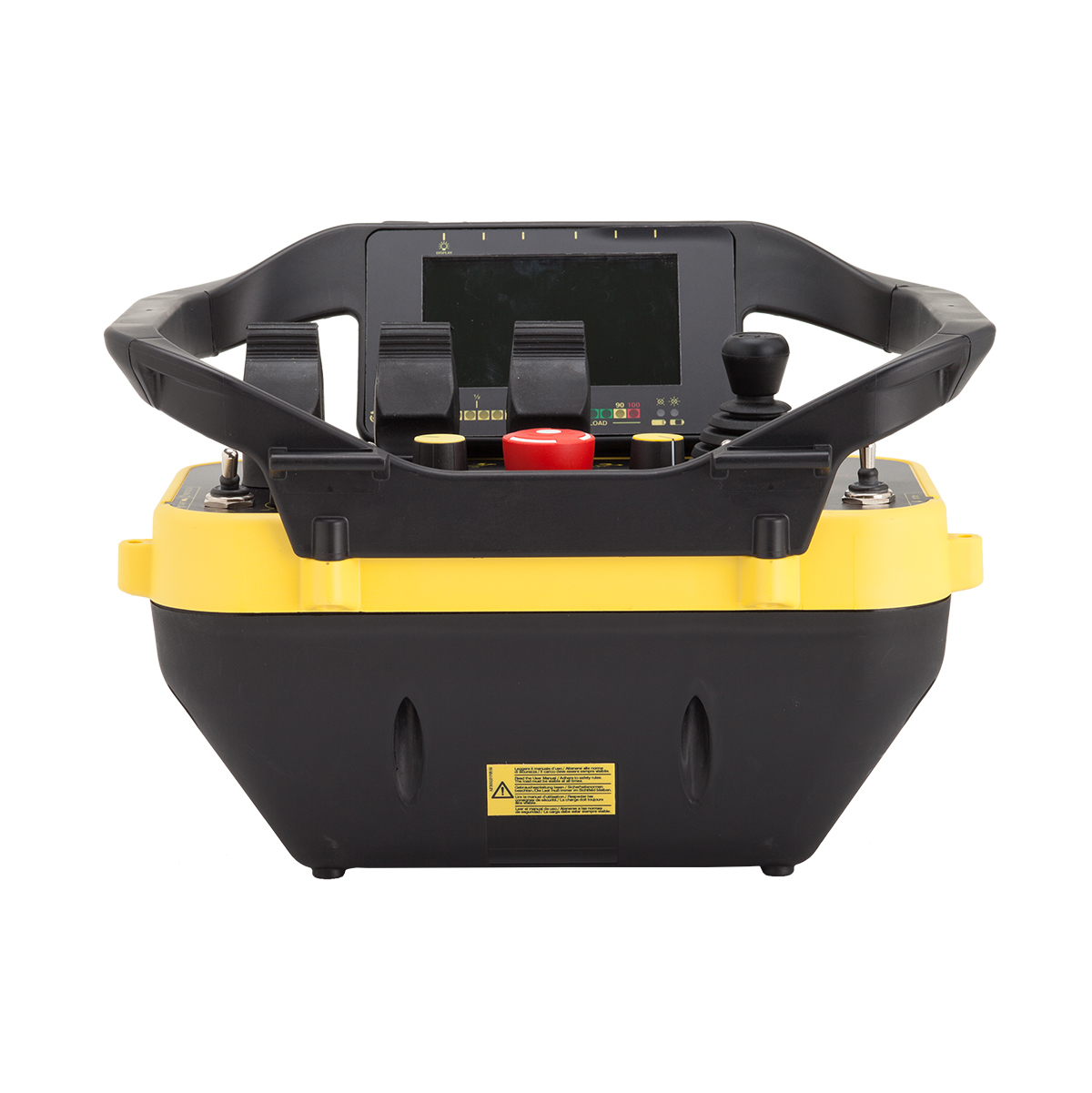

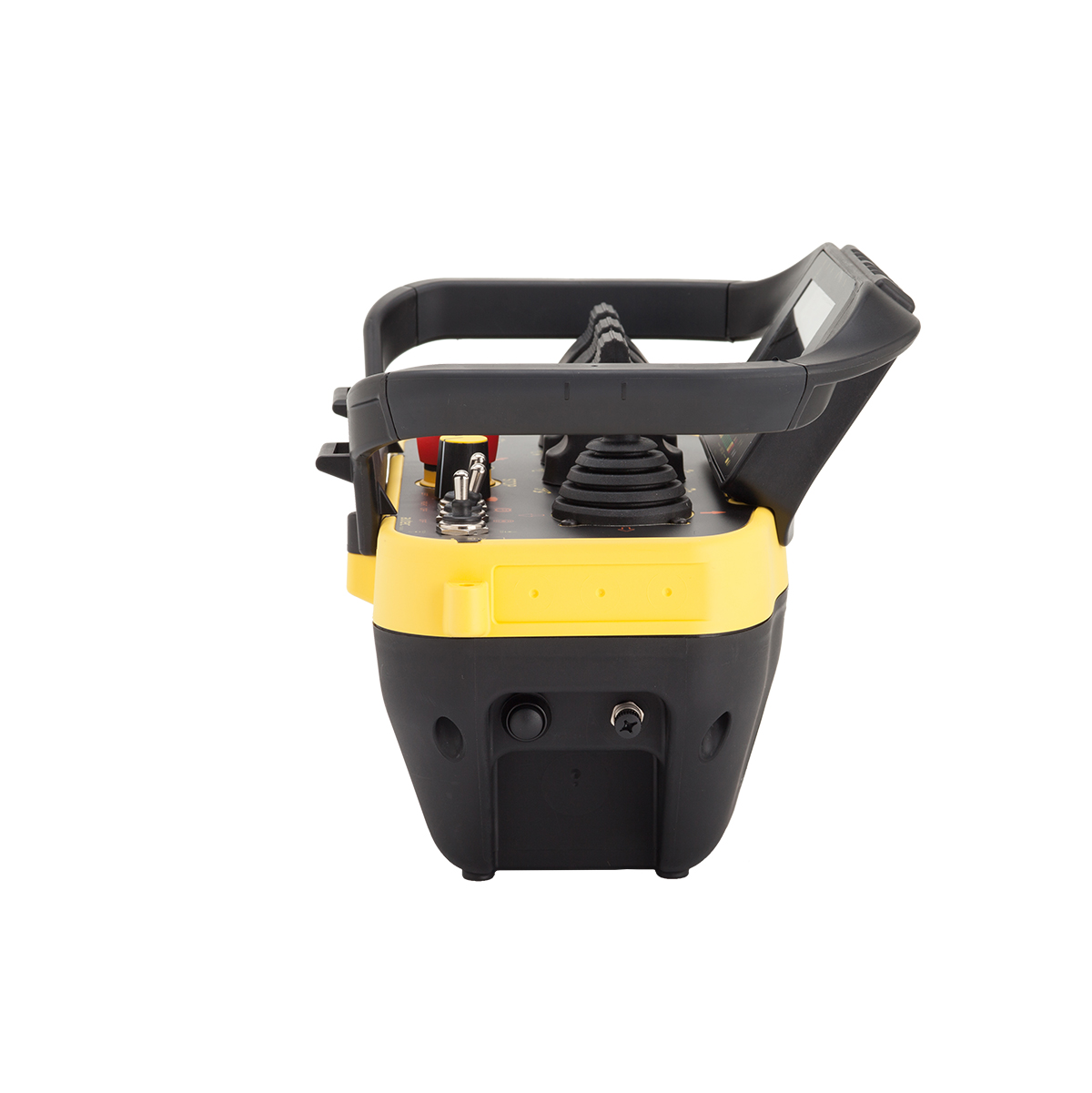

The PJM proportional joystick transmitting unit has up to 12 proportional controls and up to 64 digital controls with a data feedback option that displays the information received from the machine on a graphic display, matrix LED or panel LED.

Accessories
Shoulder harness or waist belt
Removable NiMH or Li-Ion battery and battery charger

Options

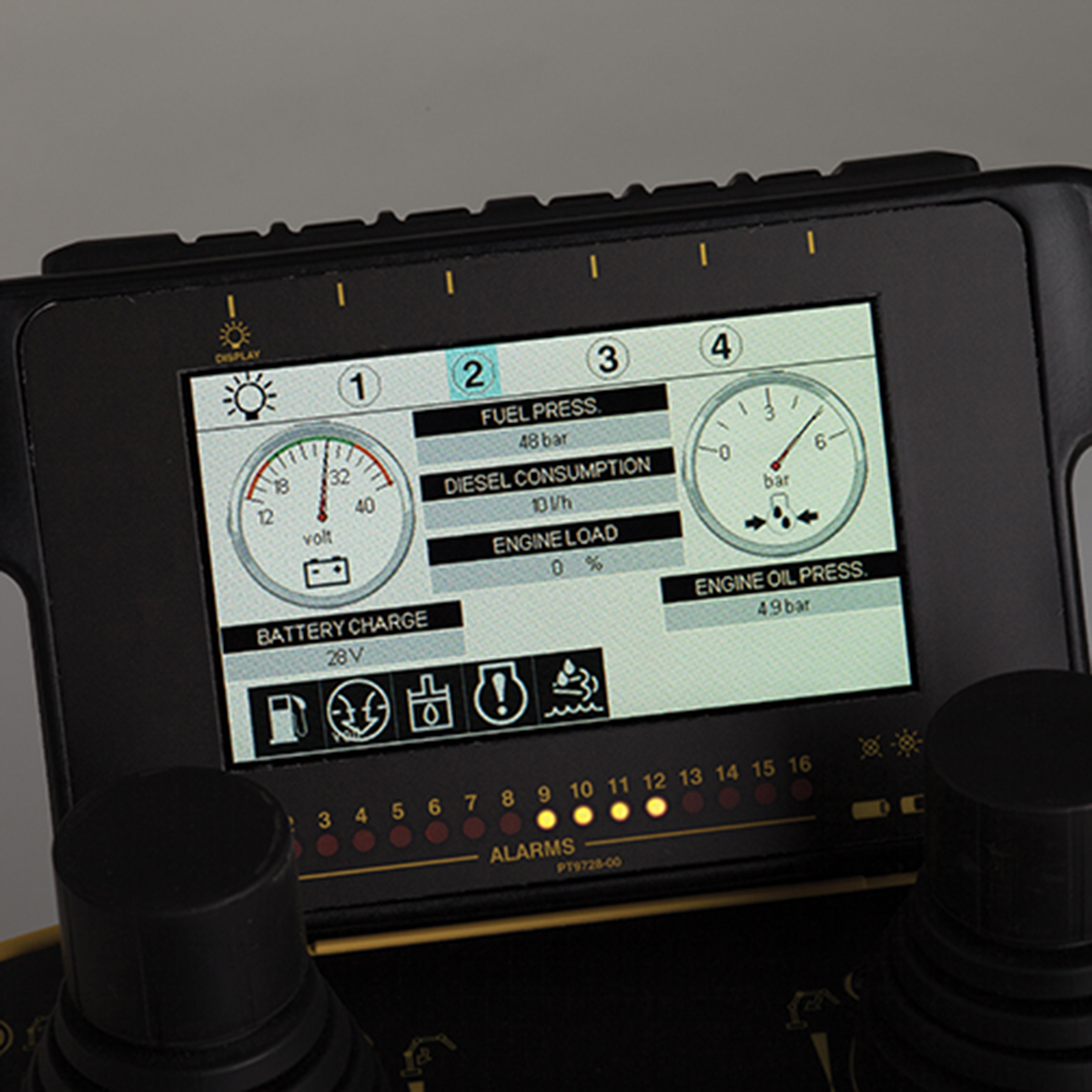

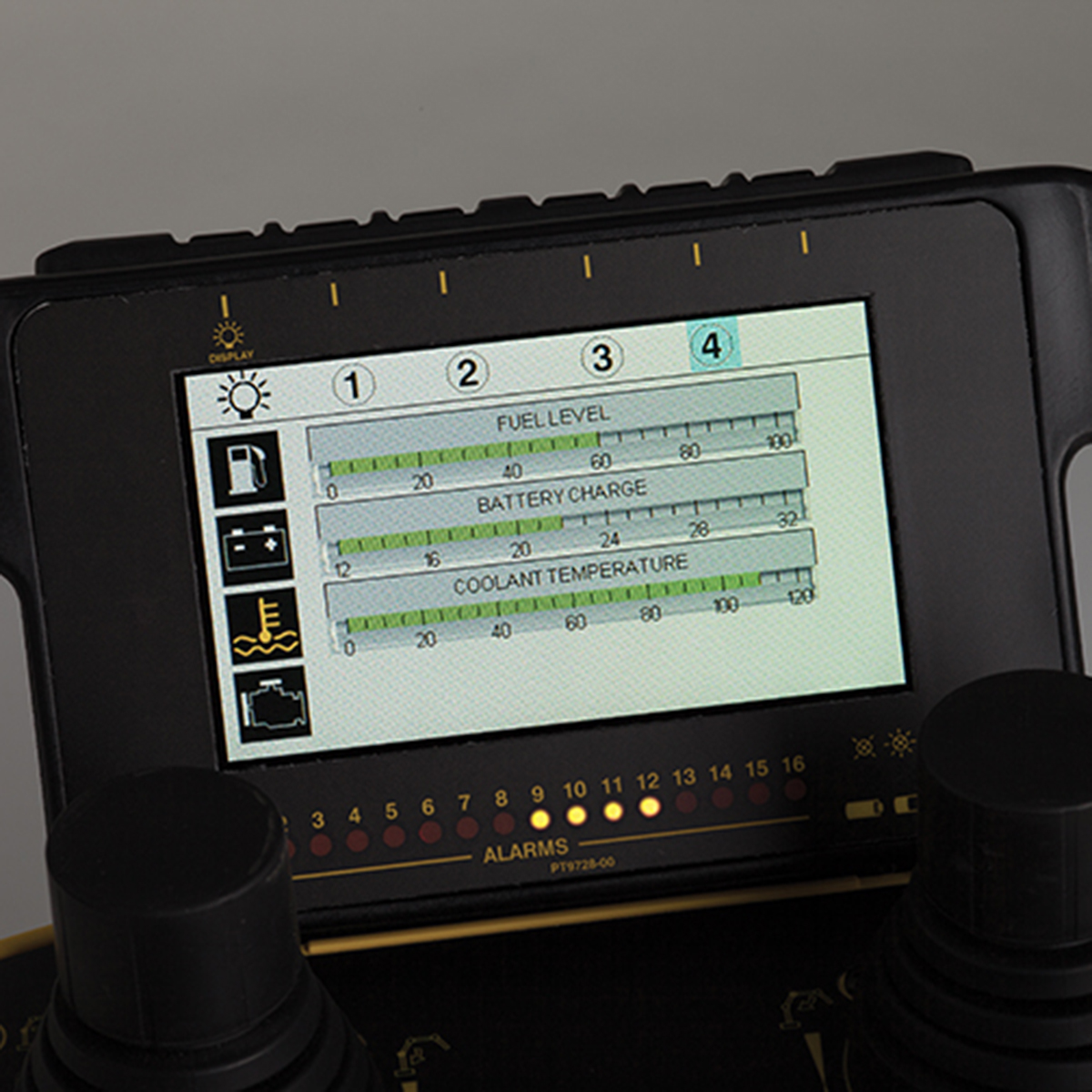

2.7" transflective LCD graphic display
4.3" TFT LCD display (480x272 pixels, 65536 colours)
32 LED matrix
LEDs on panel
Cable control
External buzzer
IR sensor
Tilt or impact sensor (only with HIC controls expansion board or 4.3" display)
Marine environment protection
3-axis joystick
M-Key removable magnetic power keyswitch

Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button

TECHNICAL DATA SHEET

Power supply
7.4 VDC (Li-Ion Battery)
7.2 VDC (NiMH Battery)
Frequency band
870/915 MHz and 2.4 GHz FHSS
Hamming distance ≥ 15
Typical working range
100 m
330 ft
Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display 18.5 h (Li-Ion Battery)
11 h (NiMH Battery)
Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display with 2.7" display: 15 h (Li-Ion battery), 9 h (NiMH battery)
with 4.3" display: 8 h (Li-Ion battery)
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
up to PL e, cat. 4 / SIL 3

Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061)
up to PL d, cat. 3 / SIL 2

Protection degree
IP65 (NEMA 4)
Operating and storage temperature
operating: (-25 °C) ÷ (+55 °C) / (-13 °F) ÷ (+130 °F)
storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F)
Dimensions
310 x 210 x 190 mm
12.20 x 8.30 x 7.50 in
Weight
2.5 kg
5.5 lb

Base station
