The first modular bar with customizable HMI

The Power Bar is a modular protective frame equipped with new features that enhance control and feedback options for the operator. Each feature can be selected individually or combined with others based on specific needs. The Power Bar frame is designed to optimize interaction with the machine, thereby improving on-site operations and increasing safety working conditions. This product is available for JQ and JE models. It is ideal for aerial platforms, cranes, drilling rigs, and a wide variety of applications involving mobile machinery.

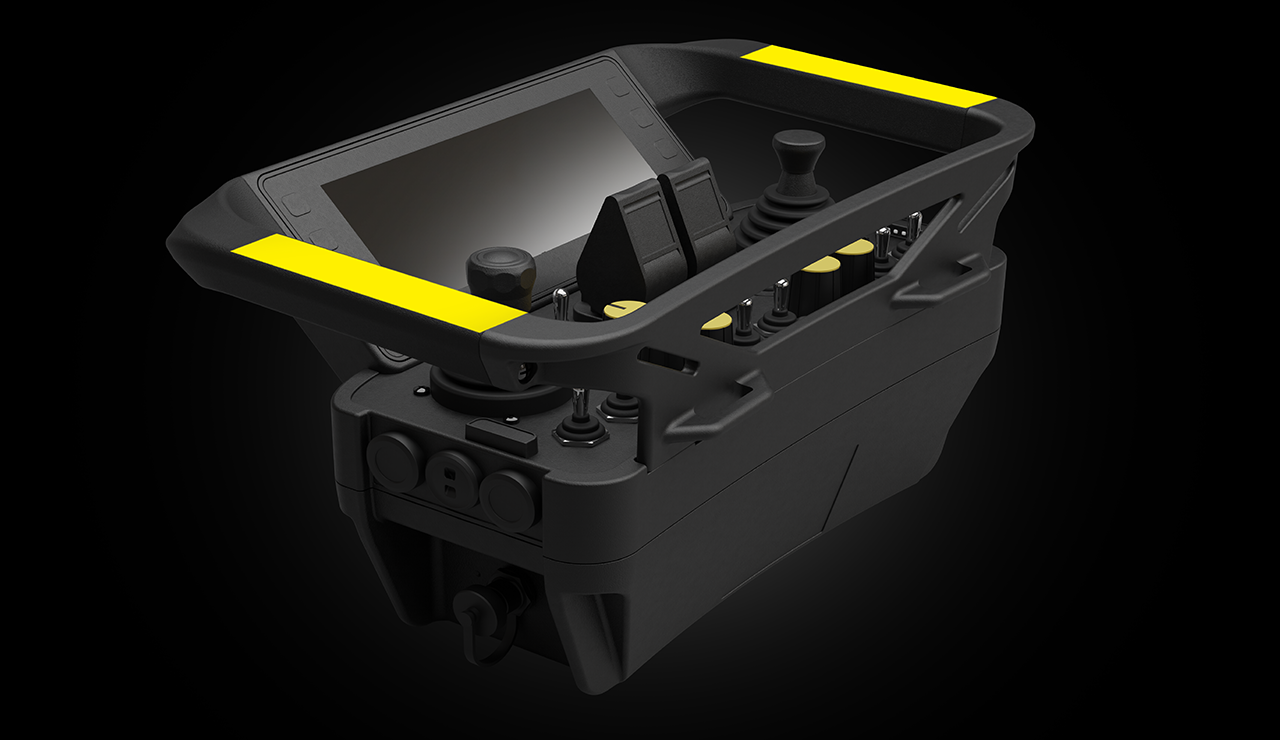

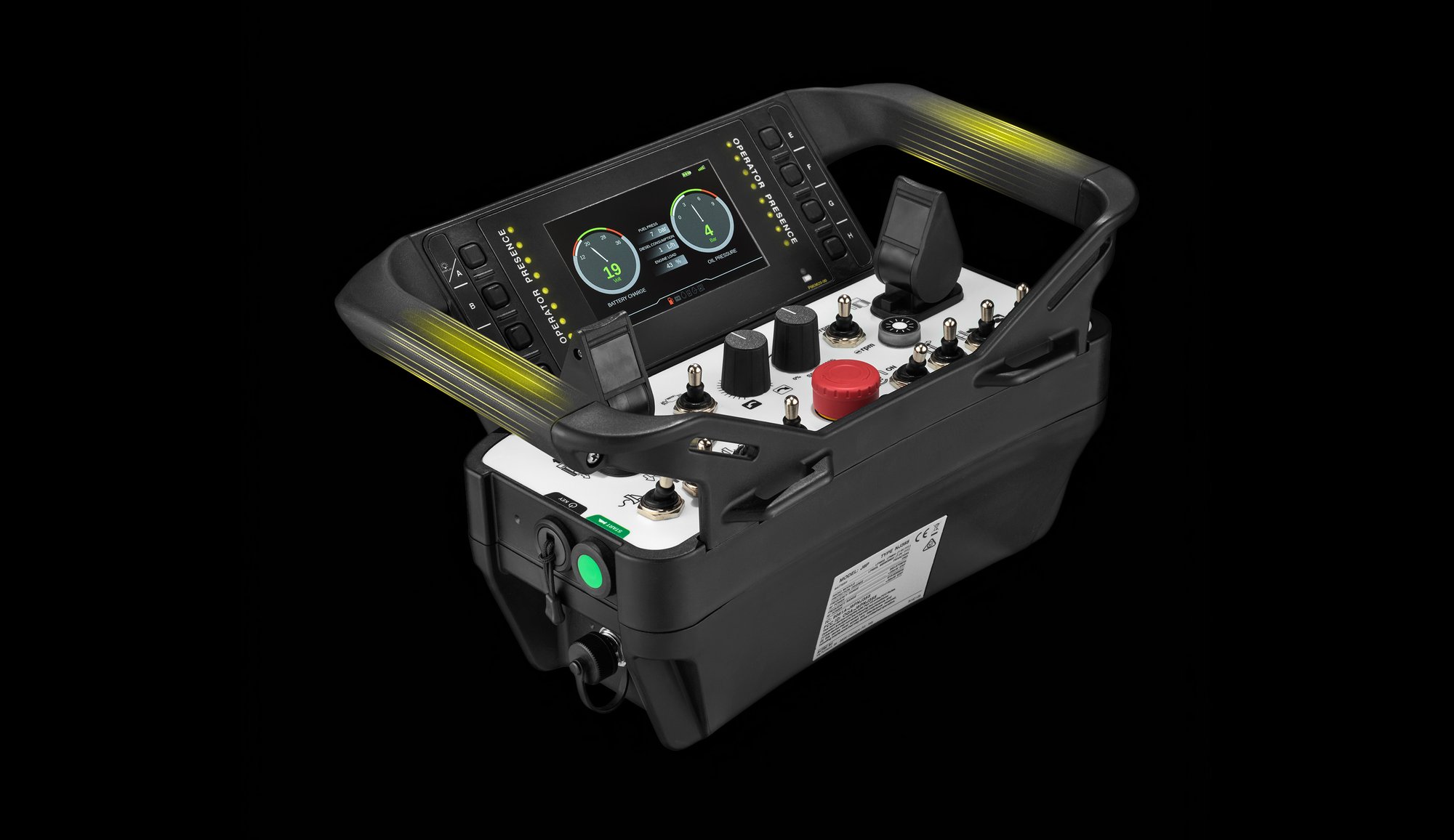

Operator Presence


The “Operator presence” sensor on both sides of the frame detects the presence of the operator’s hands, replacing external activation actuators or additional buttons on the radio remote control. This provides an incentive for the operator to place his or her hands on the frame, improving operational safety. Sensor programming allows independent association between the left and right sides of the frame, offering further customization possibilities on command control and activation.

Operator Presence 1280x740 px

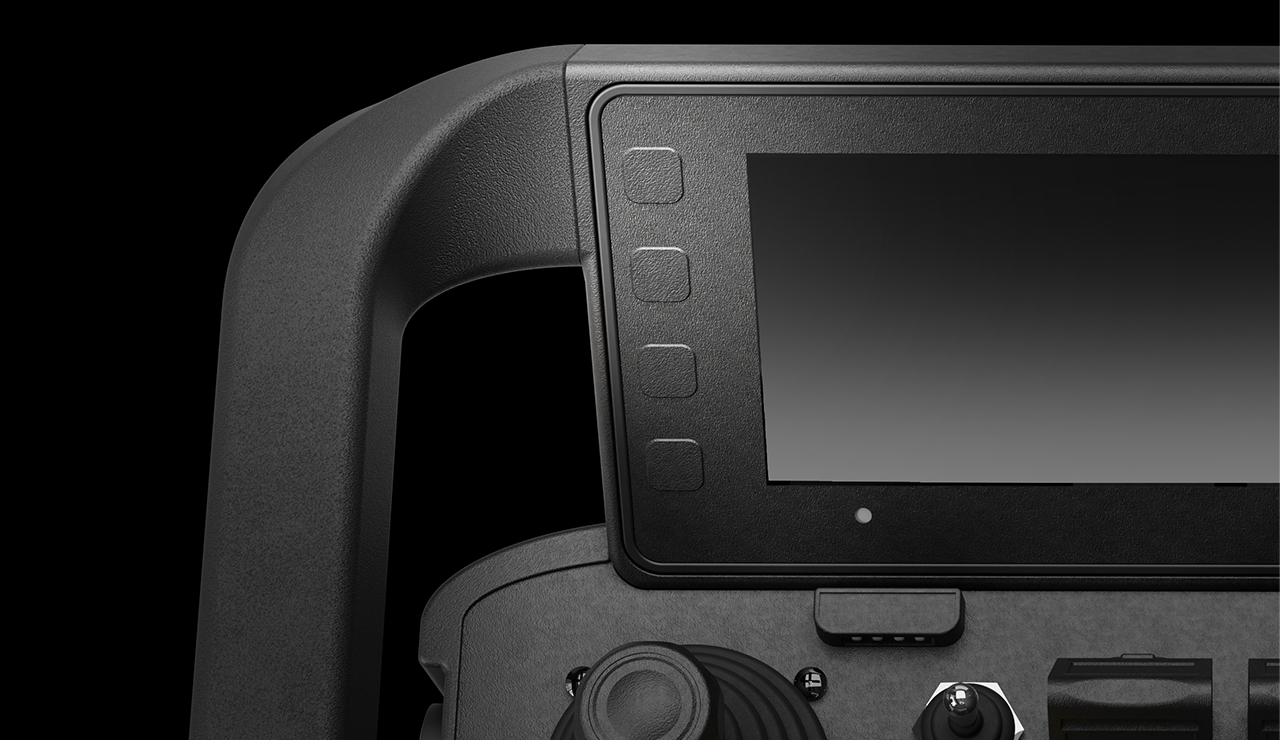

Front Buttons


The design also involved the interaction experience with the display. In fact, with the Power Bar, the selection and navigation buttons have been moved from the top of the frame to the side of the displays, with a total of 4+4 buttons, making them more accessible and convenient for the operator.

Front Button 1280x740

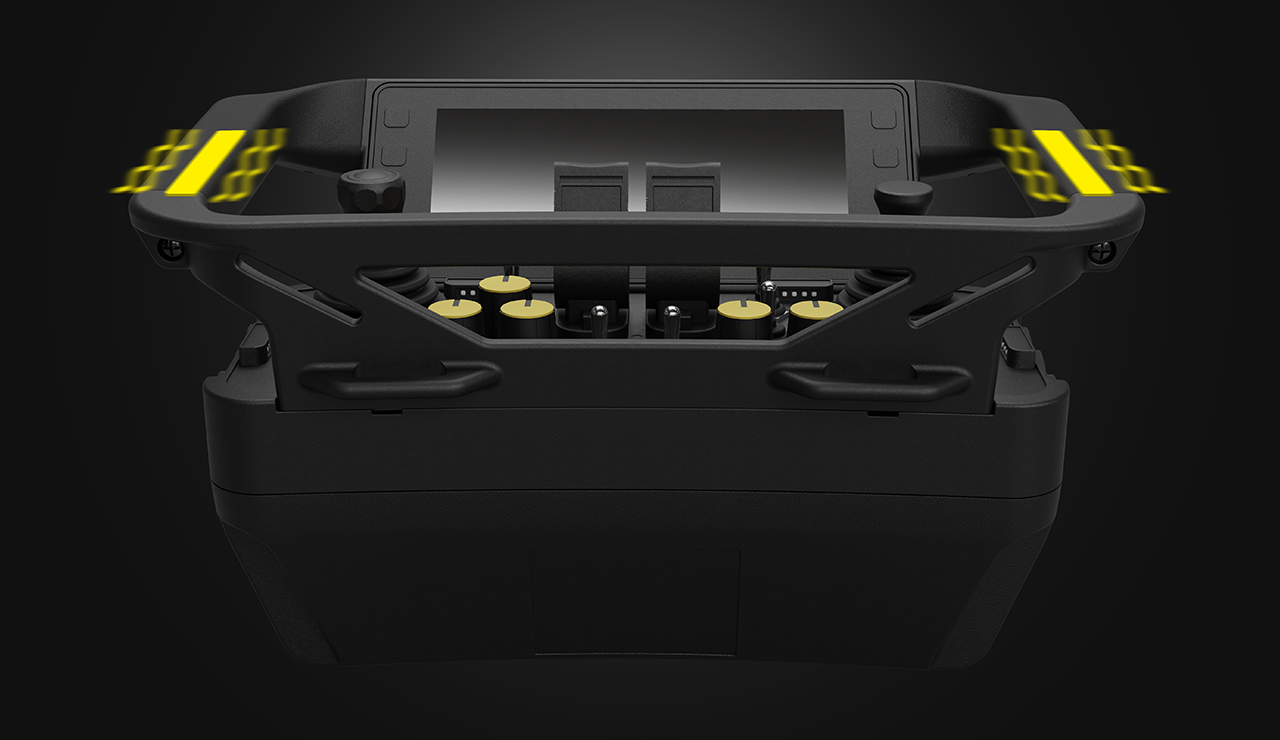

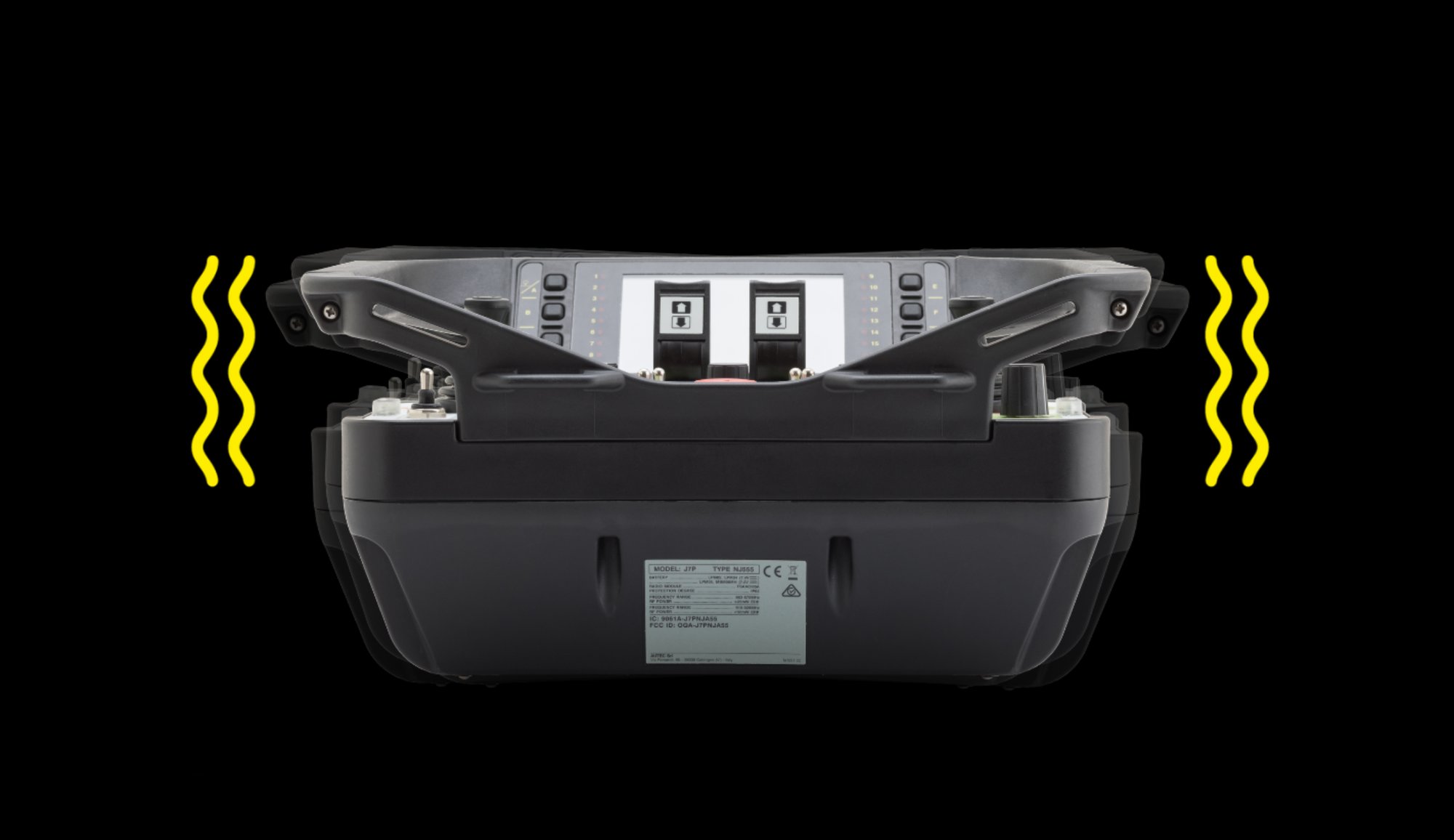

Vibration Feedback


The “Vibration Feedback” option is intended to alert the operator to danger by improving safety in noisy environments. Vibration is also fully customizable in terms of both frequency and intensity.

Vibration Alert 1280x740 px

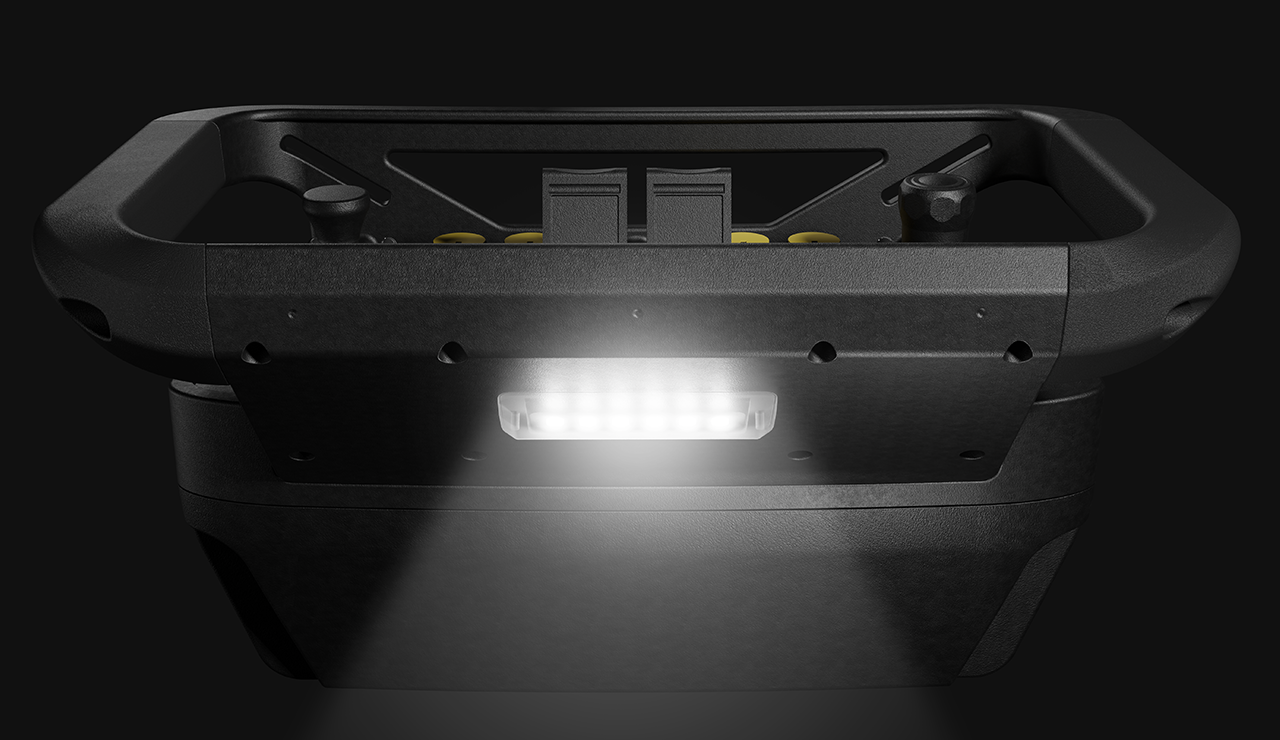

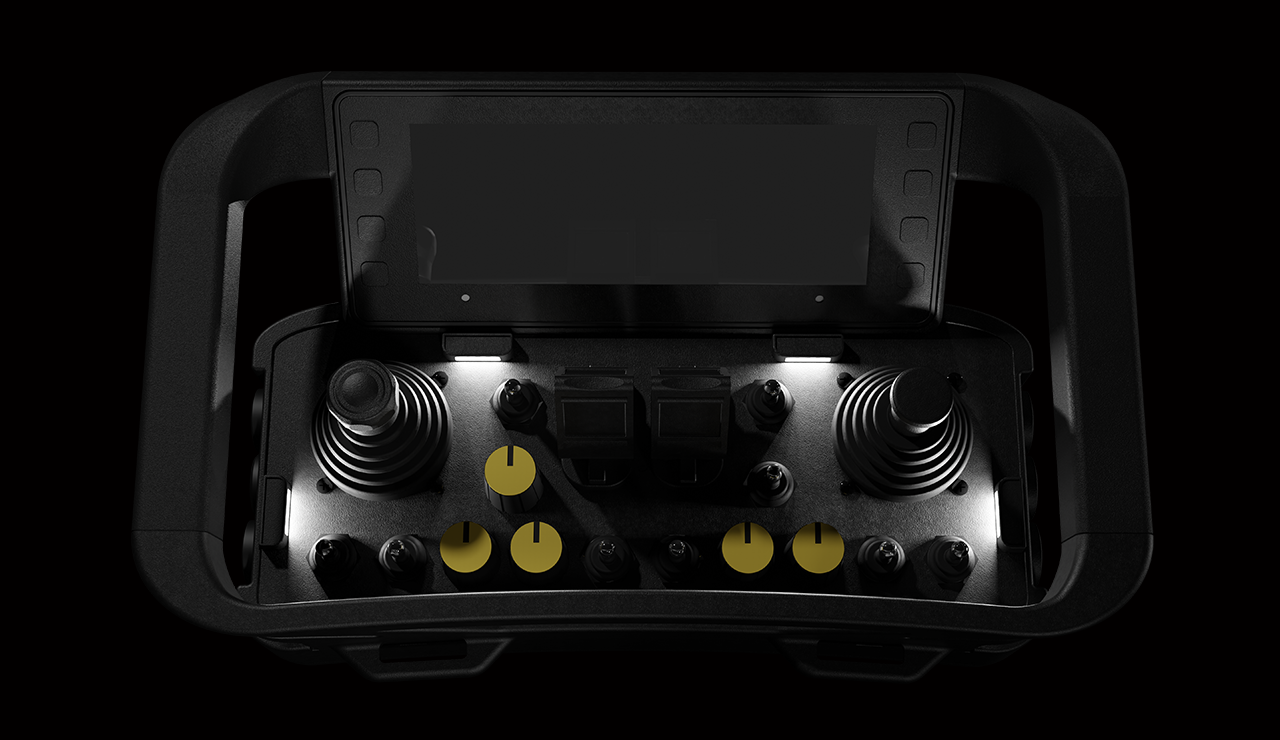

Night Mode

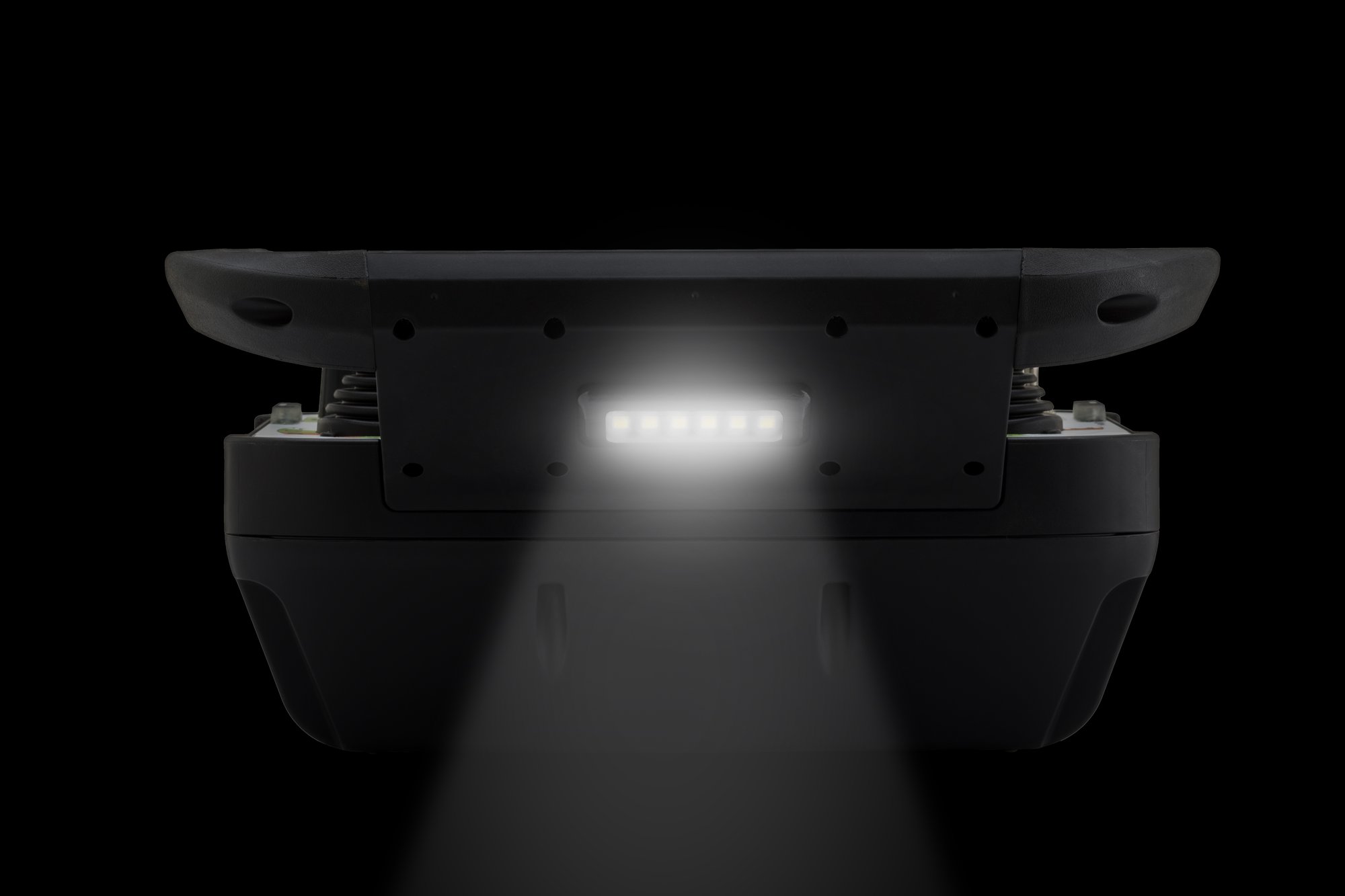

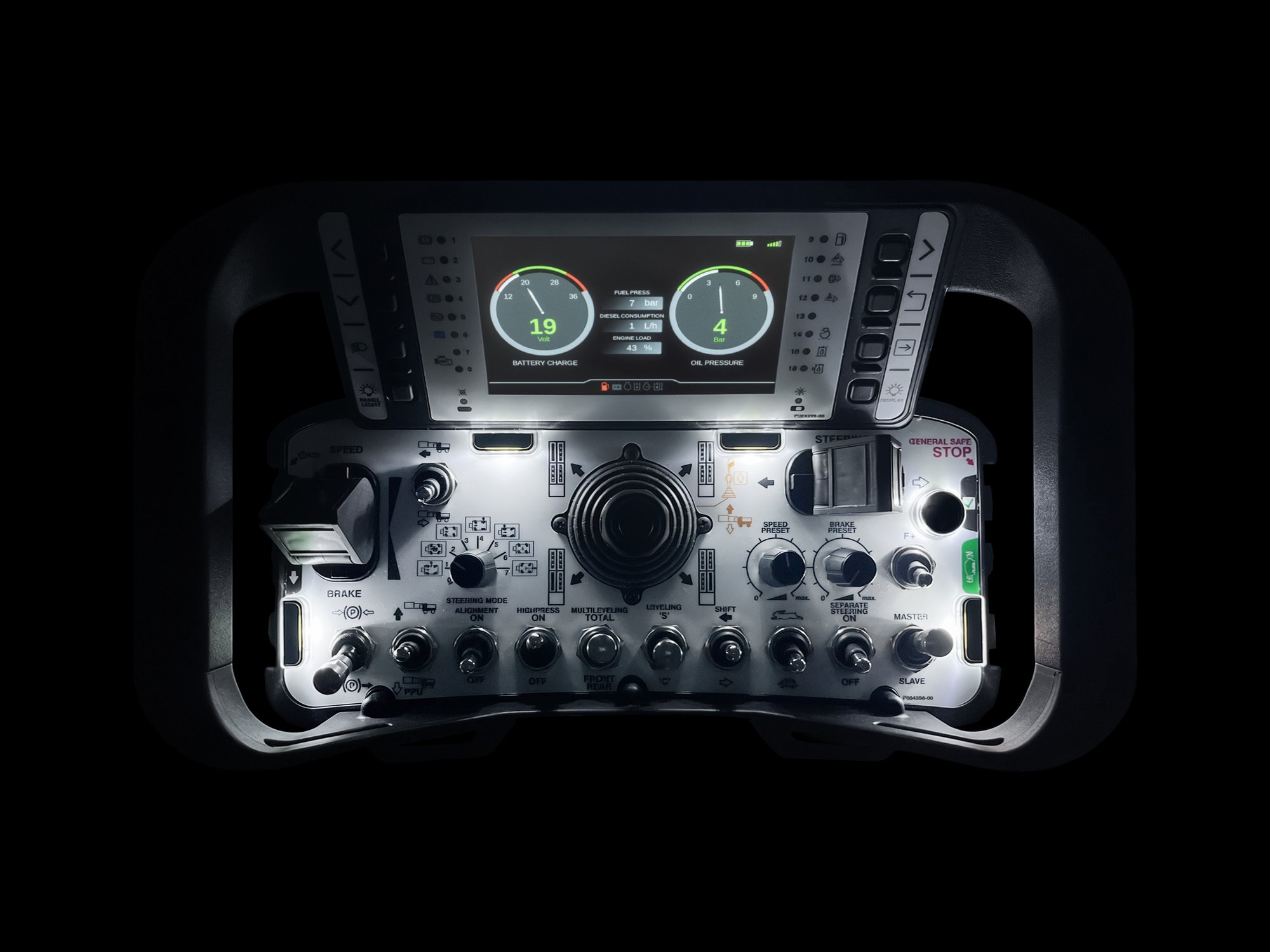

The “Night Mode” option introduces two lighting options on the radio remote control. The panel can be illuminated to facilitate night work by providing visibility of all actuators. In addition, a front light can also be added to illuminate the work area, which is particularly useful in low visibility conditions.

Night Mode interne 1280x740 px
Night Mode 1280x740 px

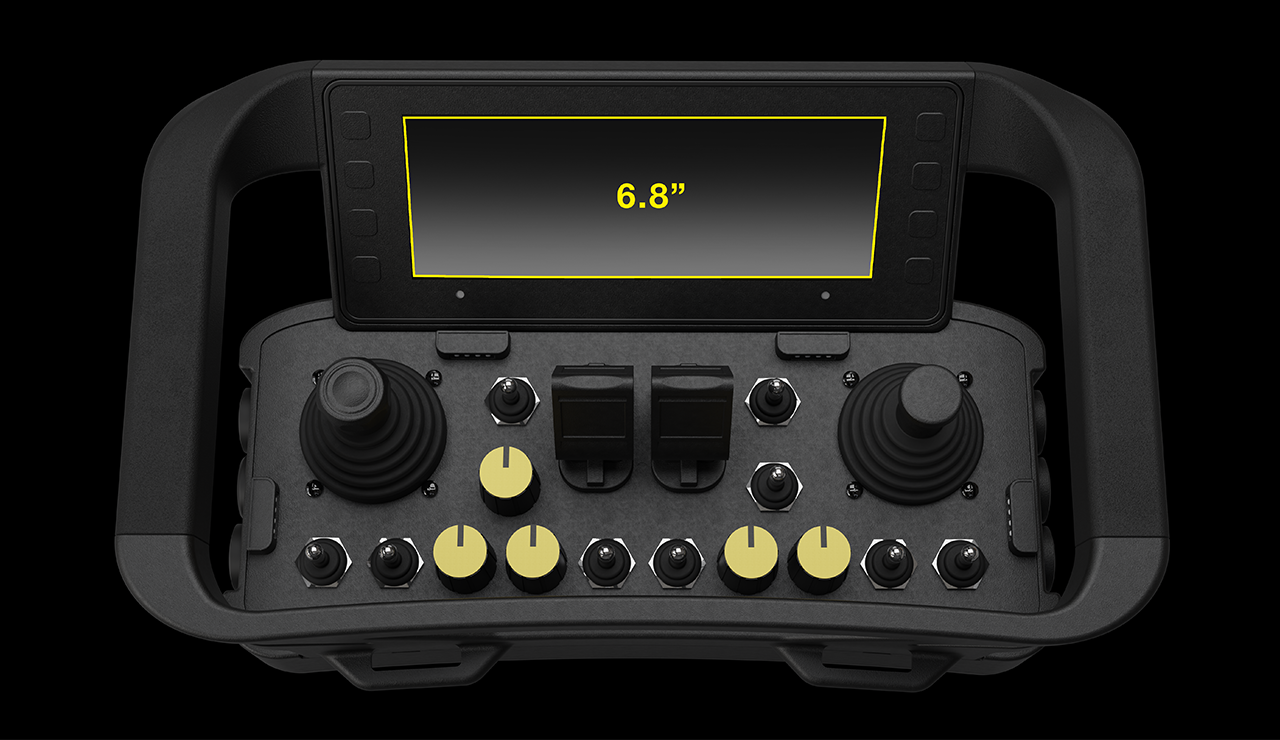

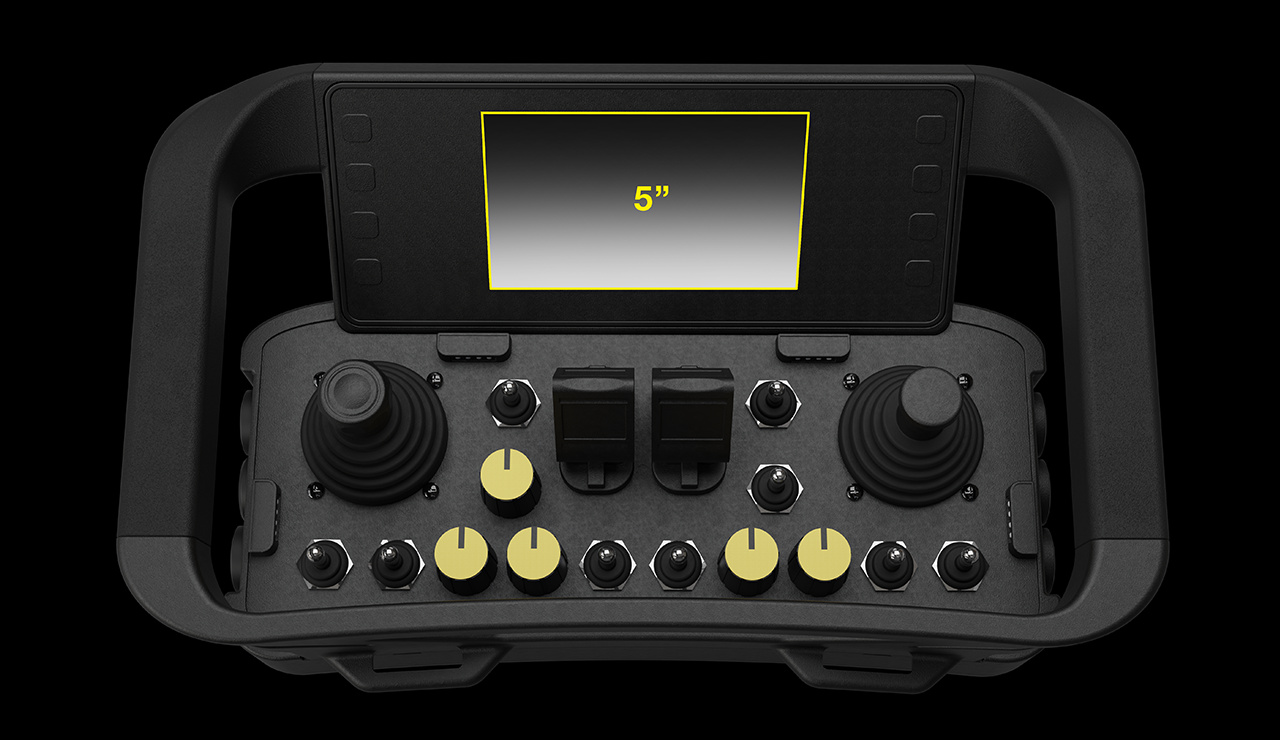

Enhanced Display

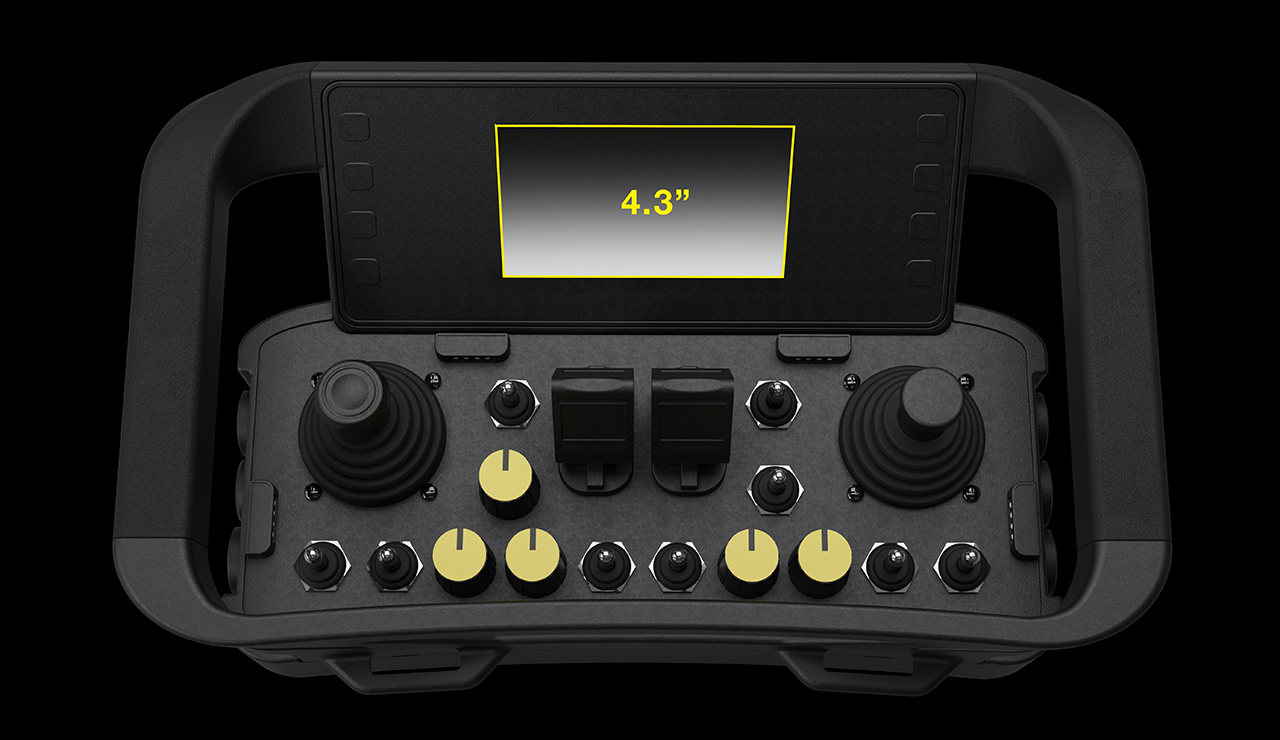

The Power Bar Frame allows the housing of displays with multiple formats, going from 4.3’’, 5’’ and 6.8’’ inches, improving visibility and feedback while interacting with the device and controlling the machine. The 4.3" light display is programmable with our AUTEC STUDIO software.

Display 4.3 1280x740 px
Display 5 1280x740
Display 6.8 1280x740 px

AUTECSTUDIO_logo_yellowwhite


AUTEC STUDIO is a proprietary programming tool designed to customize the graphical user interface (HMI) of the display. It is used by AUTEC technical department but it can also be licensed to the customer for autonomous operations. The interface is intuitive and fluid and is designed to minimize intervention’s time with excellent results.

Applications

Rock-breaker booms

Rock-breaker booms

Tunnelling machines

Tunnelling machines

Tracked vehicles

Tracked vehicles

Drilling machines

Drilling machines

Elevated work platforms (ewp)

Elevated work platforms (ewp)

Telehandlers

Telehandlers

Forklifts

Forklifts

Machine tools

Machine tools

Cut & press machines

Cut & press machines

Robotics

Robotics

Container lifters

Container lifters

Mobile boat trolleys

Mobile boat trolleys

Contact us for customized support
